Reinforced clutch kit Xtreme Outback for Toyota...
Reinforced clutch kit Xtreme Outback for Toyota Hilux (2005 to 2011, 260mm)

Reinforced clutch kit Xtreme Outback for Toyota Hilux (2005 to 2011, 260mm)

KTY26010-1A
In stock - Ready to ship
€526.11

€434.80 tax excl.

Embragues Xtreme Outback resistant clutches designed to provide superior performance, specially designed for Toyota Hilux (KUN25), 2.5 D-4D engine (2KDFTV) from 2005 to 2011 and Toyota Hilux (KUN16/26) 3.0 D engine (1KDFTV) from 2005 to 2008.



Xtreme Outback

The Xtreme Outback - Heavy Duty Sprung Organic Kit /-1A is a high-strength organic clutch kit specially designed for vehicles with light performance modifications. This kit provides excellent handling capability and an approximate 15-40% increase in clamping force (specific to the application).

Features and Specifications:

Torque Capacity: 430Nm

Clamping Load: 800kg (28% increase over standard)

Organic Friction Discs

Pressure Plate Type: Heavy Duty

Kit Contents: Everything needed for a successful installation + accessories

Recommended Applications:

  • Vehicles with minor performance modifications
  • Everyday use, including off-road driving
  • Vehicles used for towing near their maximum capacity

Design and Durability:

Designed and developed to withstand the planet's most demanding conditions, Xtreme Outback clutch kits are the ultimate high-strength upgrade for 4x4 vehicles used on-road and off-road. Each Xtreme Outback clutch kit aims to achieve an optimal balance between performance, durability, and handling.

Utilized by motor sports teams and armored vehicle manufacturers worldwide, Xtreme Outback clutch kits are reliable to take you there... and bring you back. Get ready for ultimate strength in the palm of your hands!

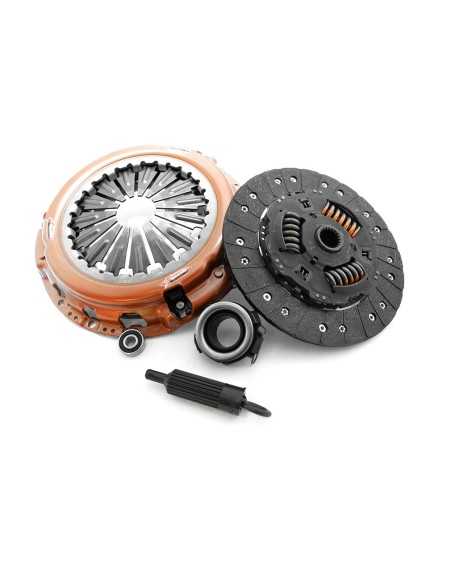

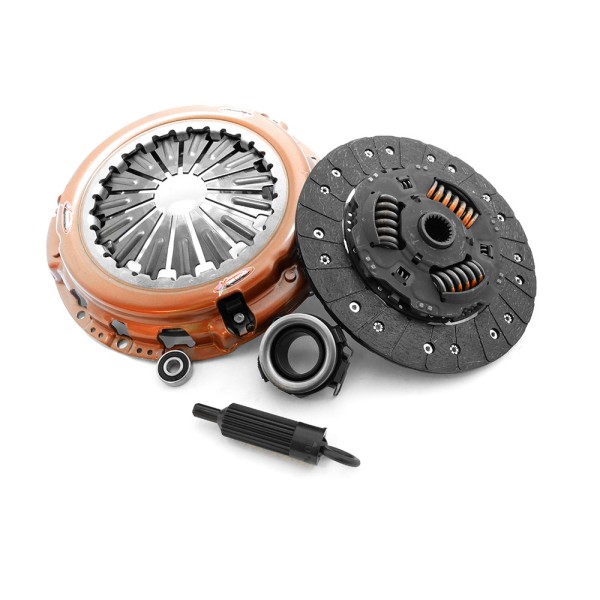

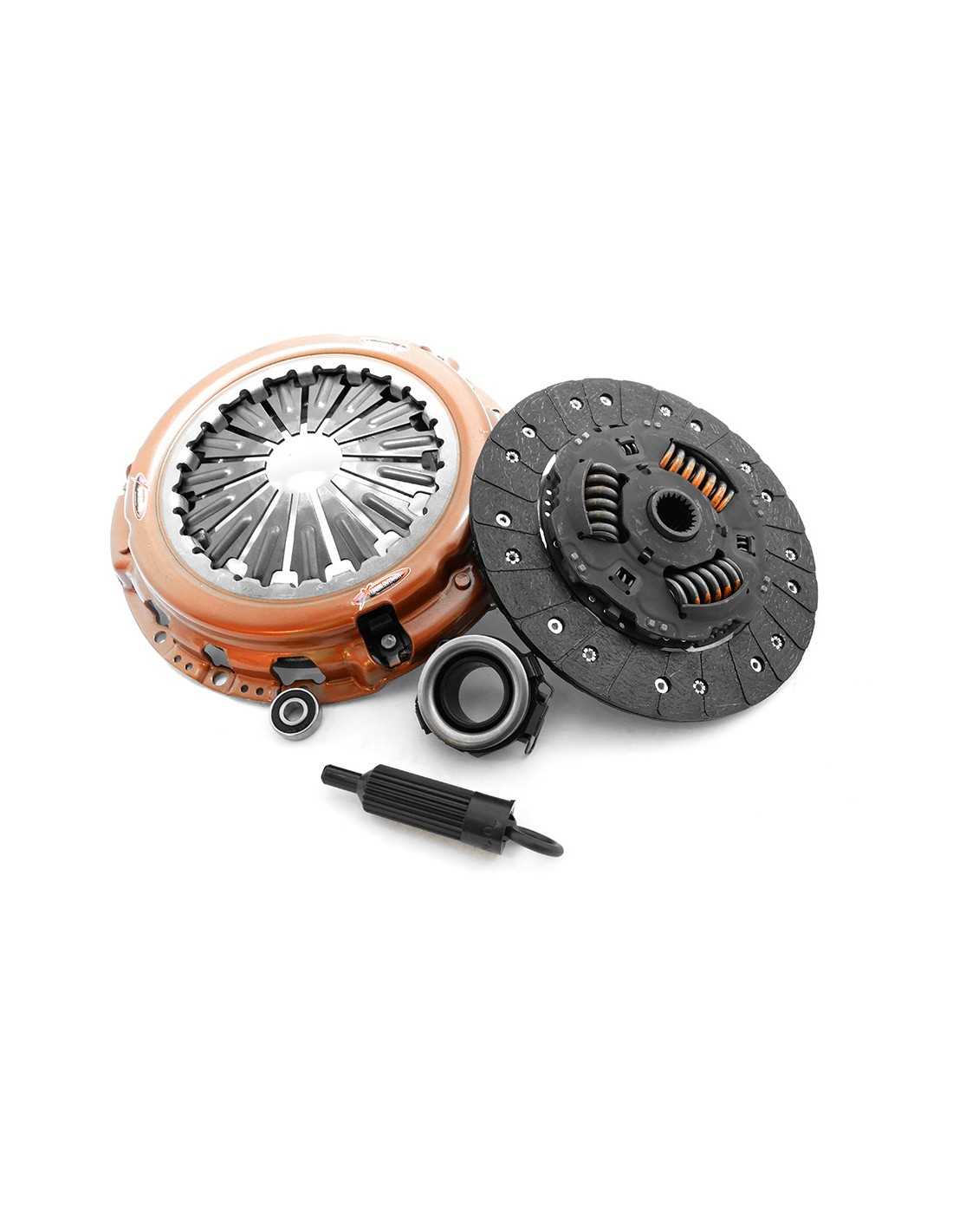

Reinforced clutch kit Xtreme Outback for Toyota Land Cruiser Series 9 (KDJ90/KDJ95) from 2000 to 2002 Toyota Hilux (KDN145/165/170/190), 2.5 D-4D engine (2KDFTV) from 2001 to 2005. Includes reinforced pressure plate, 260 mm organic disc, thrust bearing, primary bearing, and centering tool for easy assembly. The pressure plate is increased to 800kg (+40%) over the original pressure.

Model
Toyota Hilux Vigo (2005–2015)
Toyota Land Cruiser J9 (1996–2002)
OEM
31250-0K022
OEM 2
31210-0K190
OEM 3
31230-71011
Securing load
28% inc
Torque Capacity
430Nm
Steering Wheel Depth
-4mm
Clutch Disc Diameter
260mm
Number of grooves on the clutch disc
21
Striated Diameter of the Clutch Disc
29,8mm
9337467131758
