Reinforced clutch kit Xtreme Outback for Toyota Land Cruiser J9 (2000 - 2002), Toyota Hilux (2001 - 2005)

Reinforced clutch kit Xtreme Outback for Toyota Land Cruiser J9 (2000 - 2002), Toyota Hilux (2001 - 2005)

KTY26011-1A
In stock - Ready to ship
€526.25

€434.92 tax excl.

Clutches Xtreme Outback - resilient clutches designed to offer superior performance, especially for the Toyota Land Cruiser Series 9 (KDJ90/KDJ95) 3.0 D-4D 163hp engine (1KDFTV) from 2000 to 2002, Toyota Hilux (KDN145/165/170/190) 2.5 D-4D engine (2KDFTV) from 2001 to 2005.



Xtreme Outback

The Xtreme Outback - Heavy Duty Sprung Organic Kit /-1A is a high-strength organic clutch kit specially designed for vehicles with light performance modifications. This kit provides excellent handling capabilities and an approximate 15-40% increase in clamping force (specific to the application).

Features and Specifications:

Torque Capacity: 400Nm

Clamping Load: 800kg (40% increase over standard)

Organic Friction Discs

Pressure Plate Type: Heavy Duty

Kit Contents: Everything needed for successful installation + accessories

Recommended Applications:

  • Vehicles with minor performance modifications
  • Everyday use, including off-road driving
  • Vehicles used for towing near their maximum capacity

Design and Durability:

Designed and developed to withstand the most demanding conditions on the planet, Xtreme Outback clutch kits are the ultimate high-strength upgrade for 4x4 vehicles used both on-road and off-road. Each Xtreme Outback clutch kit aims to achieve an optimal balance of performance, durability, and handling.

Utilized by motorsport teams and armored vehicle manufacturers worldwide, Xtreme Outback clutch kits are reliable to take you there... and bring you back. Get ready for ultimate strength in the palm of your hand!

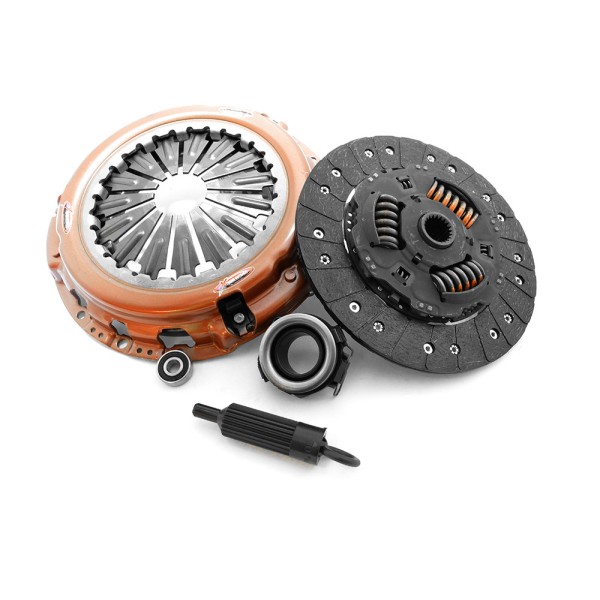

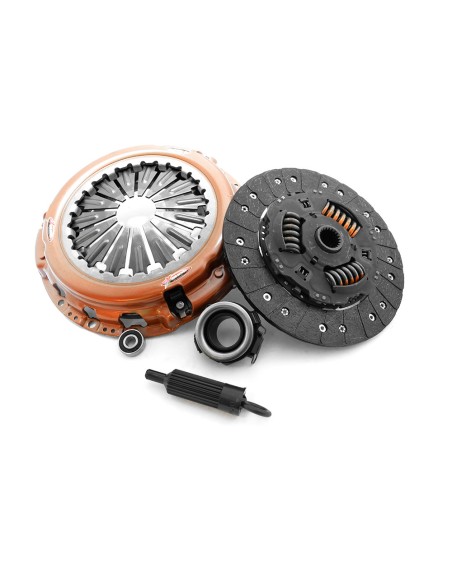

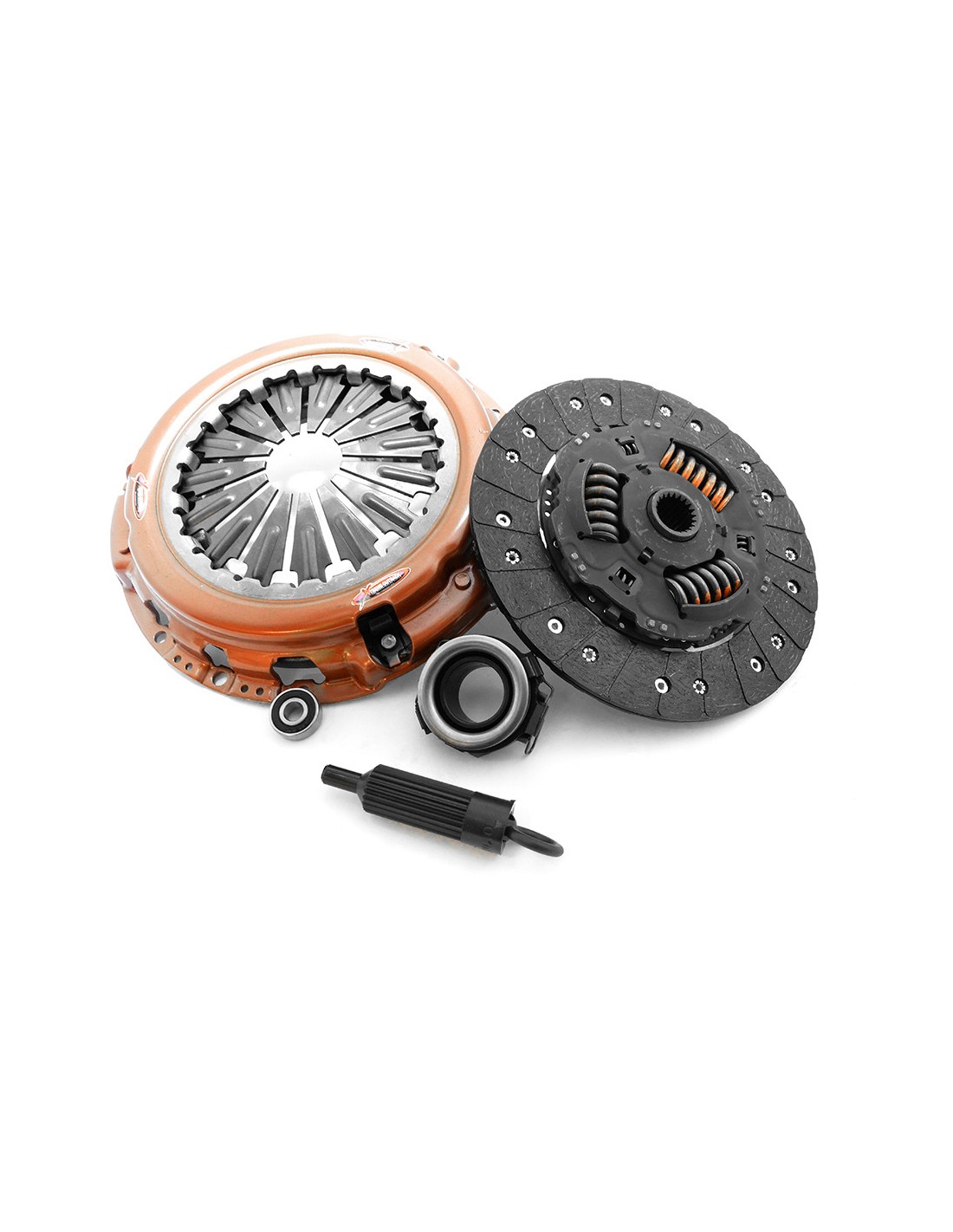

Xtreme Outback Reinforced Clutch Kit for Toyota Land Cruiser Series 9 (KDJ90/KDJ95) from 2000 to 2002Toyota Hilux (KDN145/165/170/190), 2.5 D-4D engine (2KDFTV) from 2001 to 2005. Includes reinforced pressure plate, organic 260 mm disc, thrust bearing, primary bearing, and centering device for easy assembly. The pressure of the pressure plate is increased to 800kg (+40%) over the original pressure.

Model
Toyota Hilux (1997–2004)
Toyota Land Cruiser J9 (1996–2002)
OEM
31250-26171
OEM 2
31210-60200
OEM 3
31230-60170
Torque Capacity
430Nm
Steering Wheel Depth
-4,2mm
Clutch Disc Diameter
260mm
Number of grooves on the clutch disc
21
Striated Diameter of the Clutch Disc
29,8mm
9337467134490
