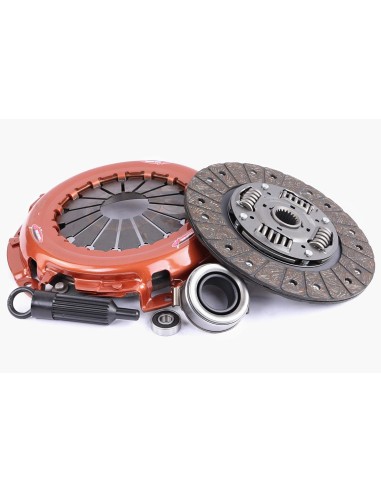

Reinforced 236mm clutch kit for Toyota Rav4 2.0...

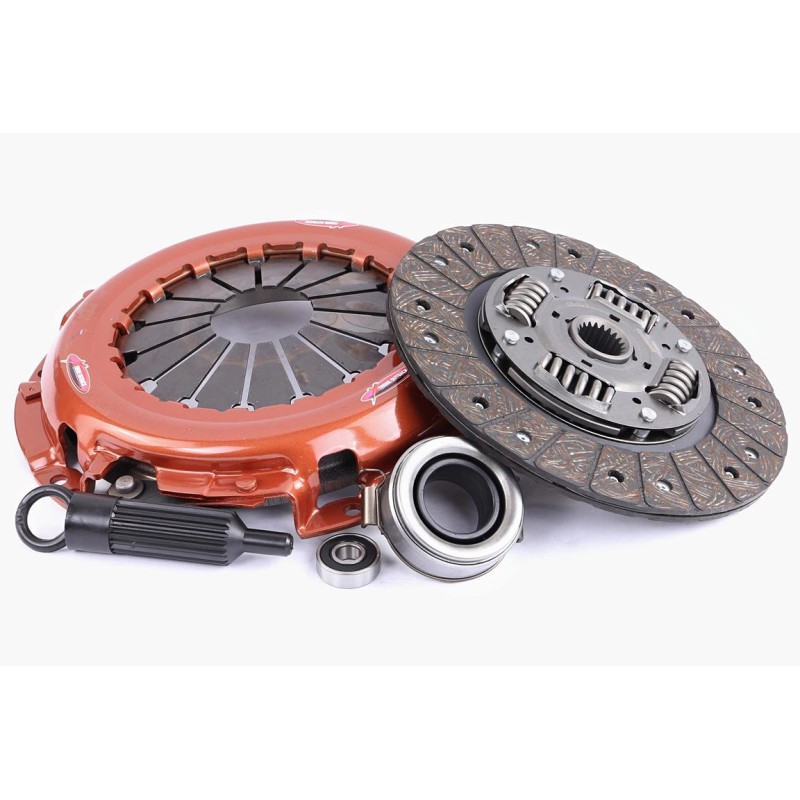

Reinforced 236mm clutch kit for Toyota Rav4 2.0 engine (1994 - 2005) - Xtreme Outback

Reinforced 236mm clutch kit for Toyota Rav4 2.0 engine (1994 - 2005) - Xtreme Outback

KTY24010-1A
Check availability
€388.77

€321.30 tax excl.

Durable Xtreme Outback clutches designed to deliver superior performance (236mm), specifically engineered for Toyota Rav4 (SXA10/SXA11) from 1994 to 2000 with a 2.0 engine (3S-FE) producing 129hp and Rav4 (ACA21/ACA20) from 2000 to 2006 with a 2.0 AWD (1AZ-FE) engine producing 150hp

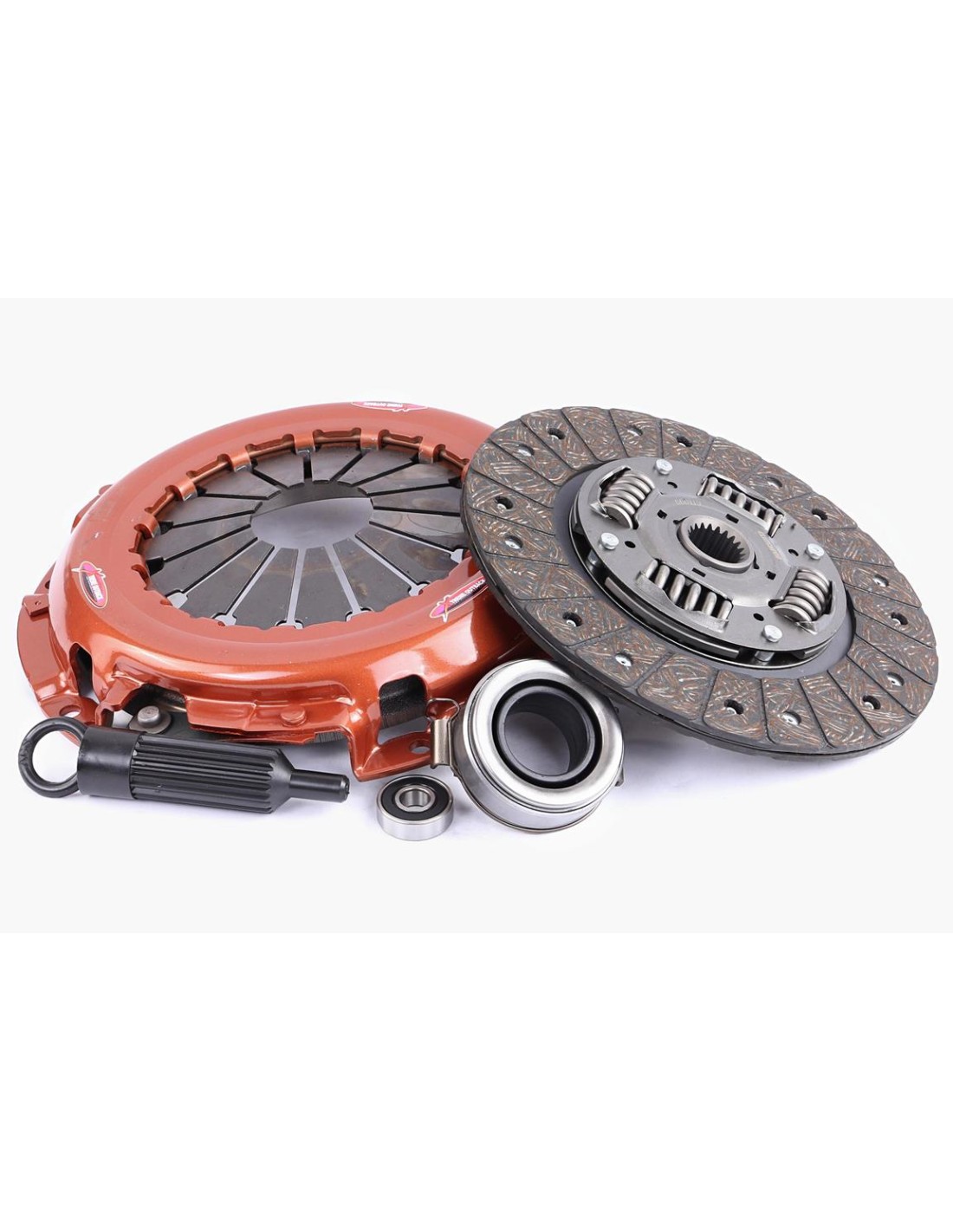

*reference photo



Xtreme Outback

The Xtreme Outback - Heavy Duty Sprung Organic Kit /-1A is a high-strength organic clutch kit specifically designed for vehicles with minor performance modifications. This kit offers excellent handling capability and an approximate 15-40% increase in clamping force (application-specific).

Features and Specifications:

Torsion Capacity: 340Nm

Clamping Load: 820kg (30% increase over standard)

Organic Friction Discs

Pressure Plate Type: Heavy Duty

Kit Contents: Everything needed for a successful installation

Recommended Applications:

  • Vehicles with minor performance modifications
  • Daily use, including off-road driving
  • Vehicles used for towing near maximum capacity

Design and Durability:

Designed and developed to withstand the most demanding conditions on the planet, Xtreme Outback clutch kits are the ultimate heavy-duty upgrade for 4x4 vehicles used both on-road and off-road. Each Xtreme Outback clutch kit aims to achieve an optimal balance between performance, durability, and drivability.

Used by motorsport teams and armored vehicle manufacturers worldwide, Xtreme Outback clutch kits are trusted to get you there... and bring you back. Get ready for maximum strength at your fingertips!

Includes everything needed for installation with a 236 mm organic disc.

Model
Toyota RAV4 (1994–2000)
Toyota RAV4 (2000–2006)
Securing load
820Kg
Torque Capacity
240Nm
Steering Wheel Depth
+0.5
Clutch Disc Diameter
236mm
Number of grooves on the clutch disc
21
Striated Diameter of the Clutch Disc
29.8mm
9337467091410
