275 mm heavy-duty clutch kit for Toyota Hilux Revo (1GDFTV/2GDFTV) - Xtreme Outback

Xtreme Outback

The Xtreme Outback - Heavy Duty Sprung Organic Kit /-1A is a heavy-duty organic clutch kit specifically designed for vehicles with minor performance modifications. This kit provides excellent driveability and an approximate 15-40 % increase in clamping force (application-specific).

Features and specifications:

Torque capacity: 520 Nm

Clamping load: 990 kg (15 % increase over standard)

Organic friction discs

Pressure plate type: Heavy Duty

Kit contents: Everything needed for successful installation + accessories

Recommended applications:

• Vehicles with minor performance modifications
• Everyday use, including off-road driving
• Vehicles used for towing close to their maximum capacity

Design and durability:

Designed and developed to withstand the most demanding conditions on the planet, Xtreme Outback clutch kits are the ultimate heavy-duty upgrade for 4x4 vehicles used both on and off road. Every Xtreme Outback clutch kit aims to achieve an optimum balance between performance, durability and driveability.

Used by motorsport teams and armoured vehicle manufacturers around the world, Xtreme Outback clutch kits can be relied on to get you there... and back. Get ready for maximum strength in the palm of your hand!

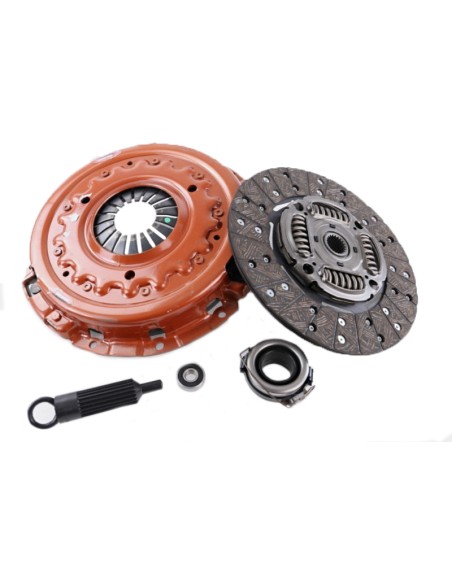

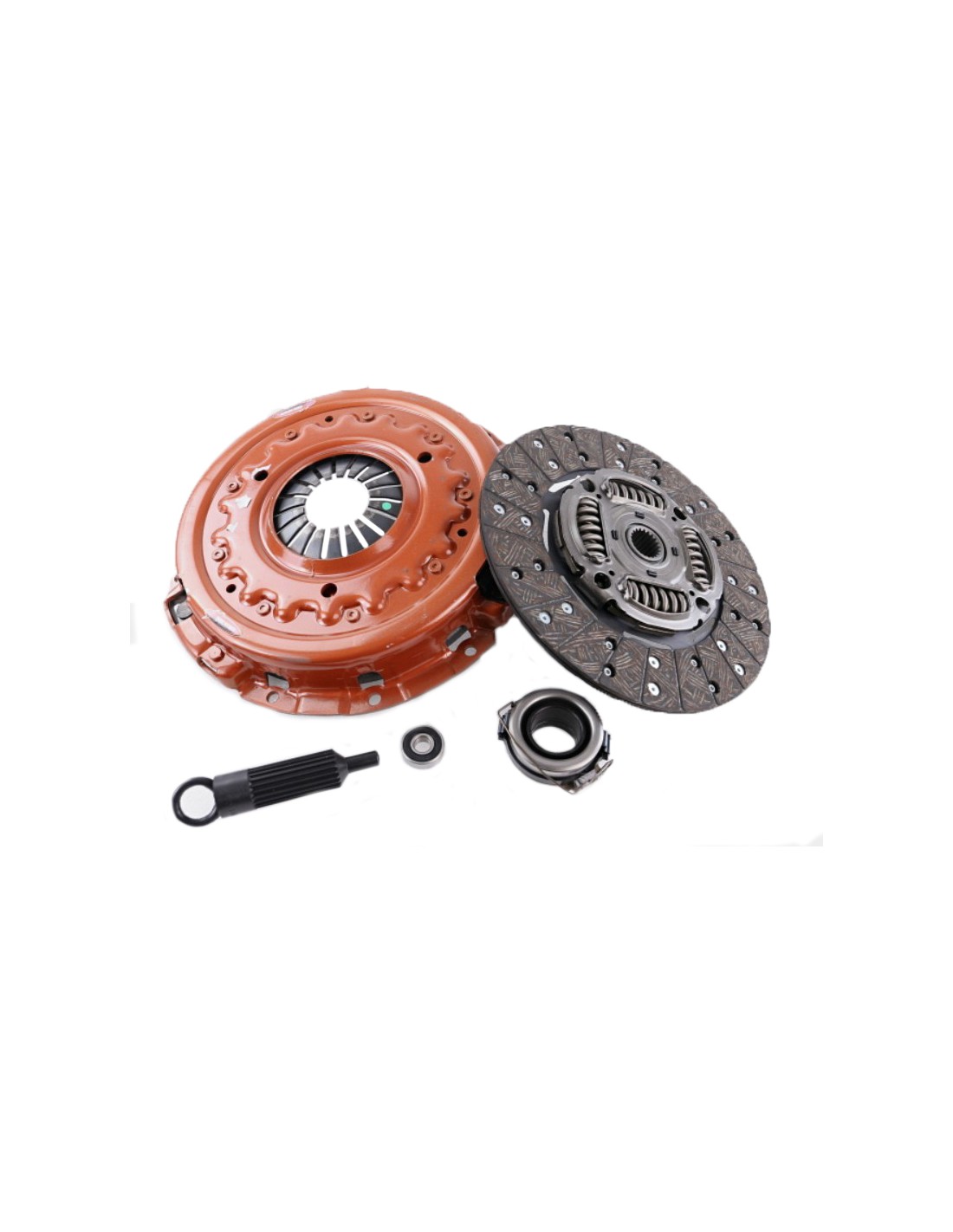

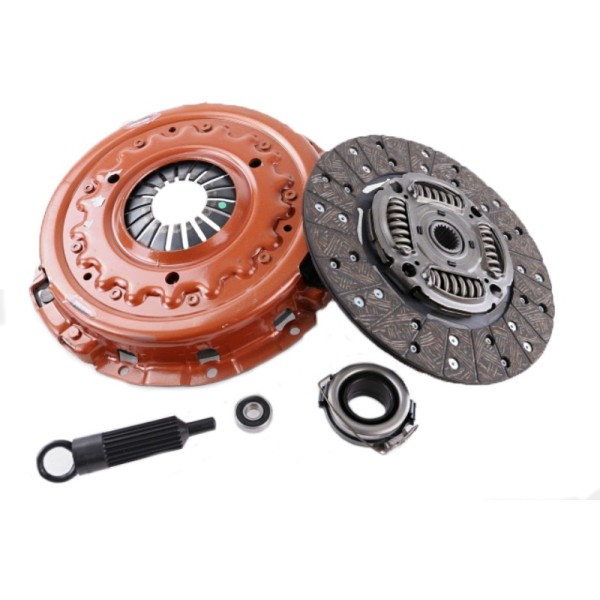

Xtreme Outback heavy-duty clutch kit for Toyota Hilux Revo from 2015 to present. Includes a heavy-duty pressure plate, an organic disc of 275 mm, release bearing, input shaft bearing and alignment tool for easier installation. The pressure plate’s clamping load is increased to 990 kg (+15 %) over the original pressure plate’s clamping load.

Technical specifications

Torque (Nm) 520

Clamping load 990 kg (15 % incl.)

Flywheel step -7.5 mm

Clutch disc diameter (mm) 275

Number of clutch disc splines 21

Clutch disc spline diameter (mm) 29.8

Single-plate design

Weight [KG]: 13.3
