Reinforced 250mm clutch kit for Nissan Navara (D40) / Pathfinder (R51) 2.5 dCi engine - Xtreme Outback

Reinforced 250mm clutch kit for Nissan Navara (D40) / Pathfinder (R51) 2.5 dCi engine - Xtreme Outback

KNI25009-1A
Check availability
€693.64

€573.26 tax excl.

Heavy-duty Xtreme Outback clutch kit designed to deliver superior performance for the Nissan Navara (D40) from 2005 to 2014 and Pathfinder (R51) from 2005 to 2010, 2.5 dCi engine (YD25DDTi).

For the installation of this clutch, it is necessary to install the single-mass conversion kit KNI25509-1A



Xtreme Outback

The Xtreme Outback - Heavy Duty Sprung Organic Kit /-1A is a high-strength organic clutch kit specifically designed for vehicles with minor performance modifications. This kit offers excellent handling capability and an approximate 15-40% increase in clamping force (application-specific).

Features and Specifications:

Torsion Capacity: 575Nm

Clamping Load: 1200kg (25% increase over standard)

Organic Friction Discs

Pressure Plate Type: Heavy Duty

Kit Contents: Everything needed for a successful installation + accessories

Recommended Applications:

  • Vehicles with minor performance modifications
  • Daily use, including off-road driving
  • Vehicles used for towing near their maximum capacity

Design and Durability:

Designed and developed to withstand the planet's most demanding conditions, Xtreme Outback clutch kits are the ultimate heavy-duty upgrade for 4x4 vehicles used both on-road and off-road. Each Xtreme Outback clutch kit aims to achieve an optimal balance between performance, durability, and drivability.

Used by motorsport teams and armored vehicle manufacturers worldwide, Xtreme Outback clutch kits are trusted to take you there... and bring you back. Get ready for maximum strength at your fingertips!

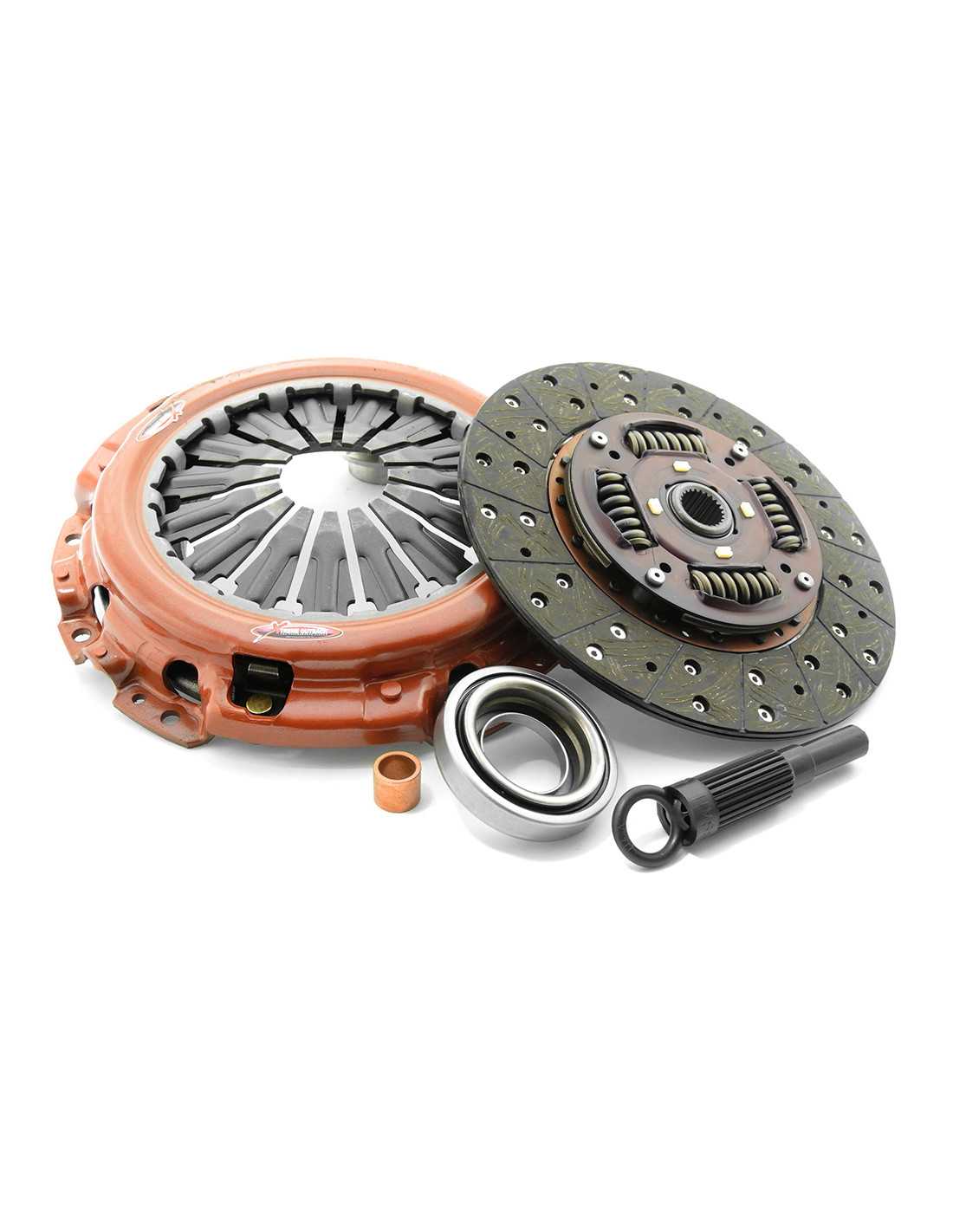

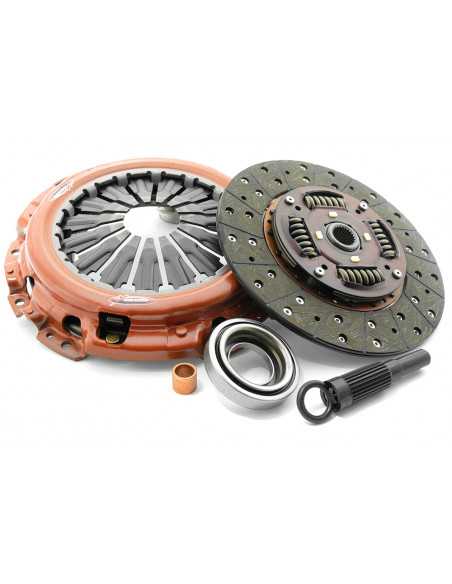

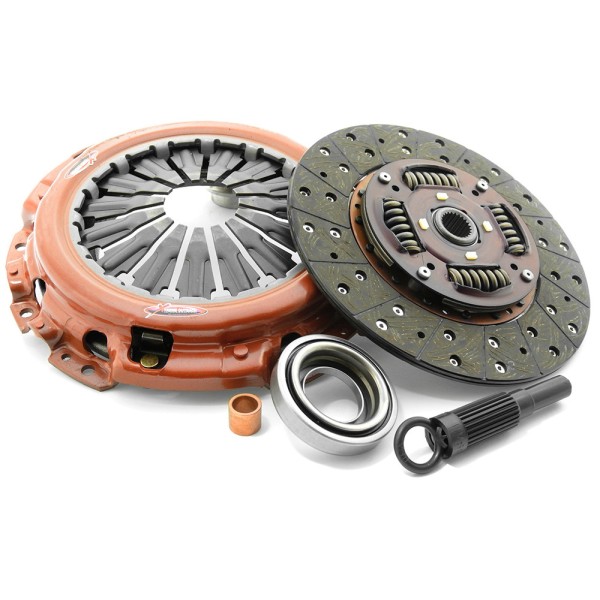

The reinforced Xtreme Outback clutch kit includes a reinforced pressure plate, pressure plate bolt kit, 250mm organic disc, release bearing, pilot bearing, and alignment tool for easy assembly. The pressure plate's force is increased over the original pressure plate's force.

Model
Nissan Navara D40 (2005–2015)
Nissan Pathfinder R51 (2005–2012)
Securing load
1200Kg
Torque Capacity
575Nm
Clutch Disc Diameter
250mm
Number of grooves on the clutch disc
24
Striated Diameter of the Clutch Disc
25,4mm
9337467145991
