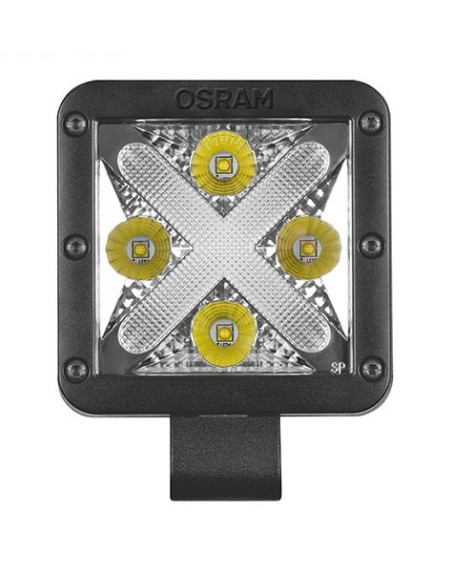

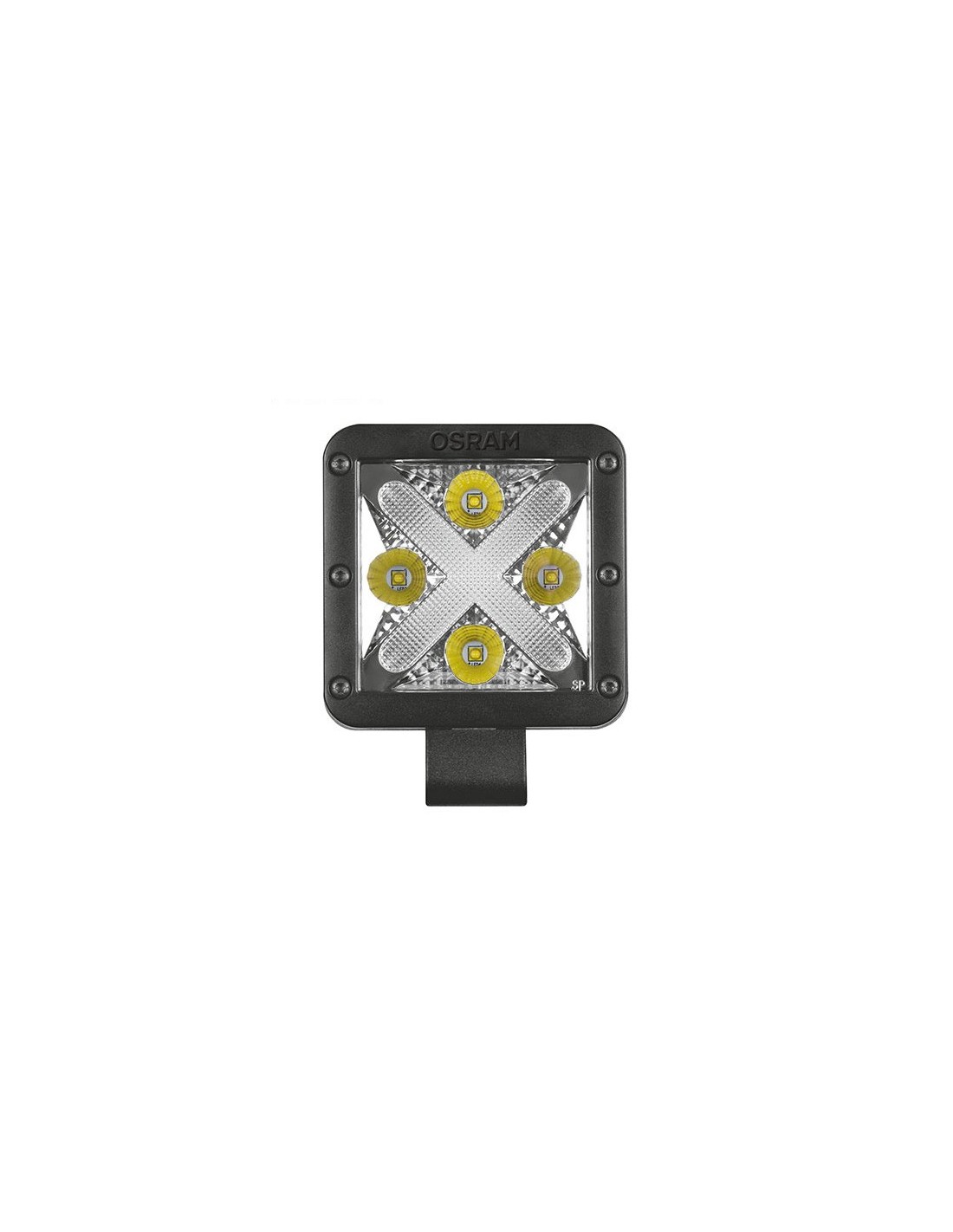

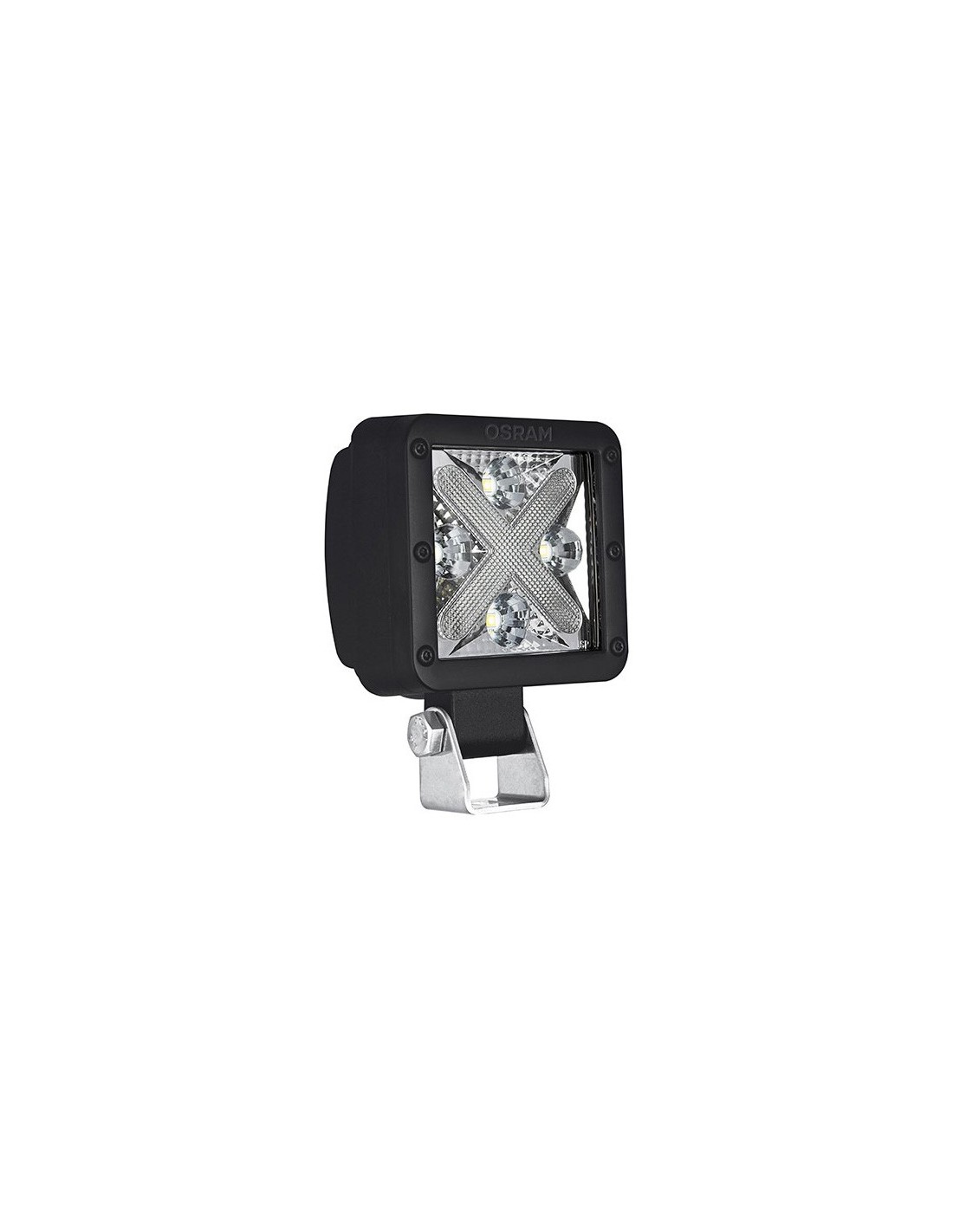

LED cube lighthouse - x mx85 - sp 12v osram

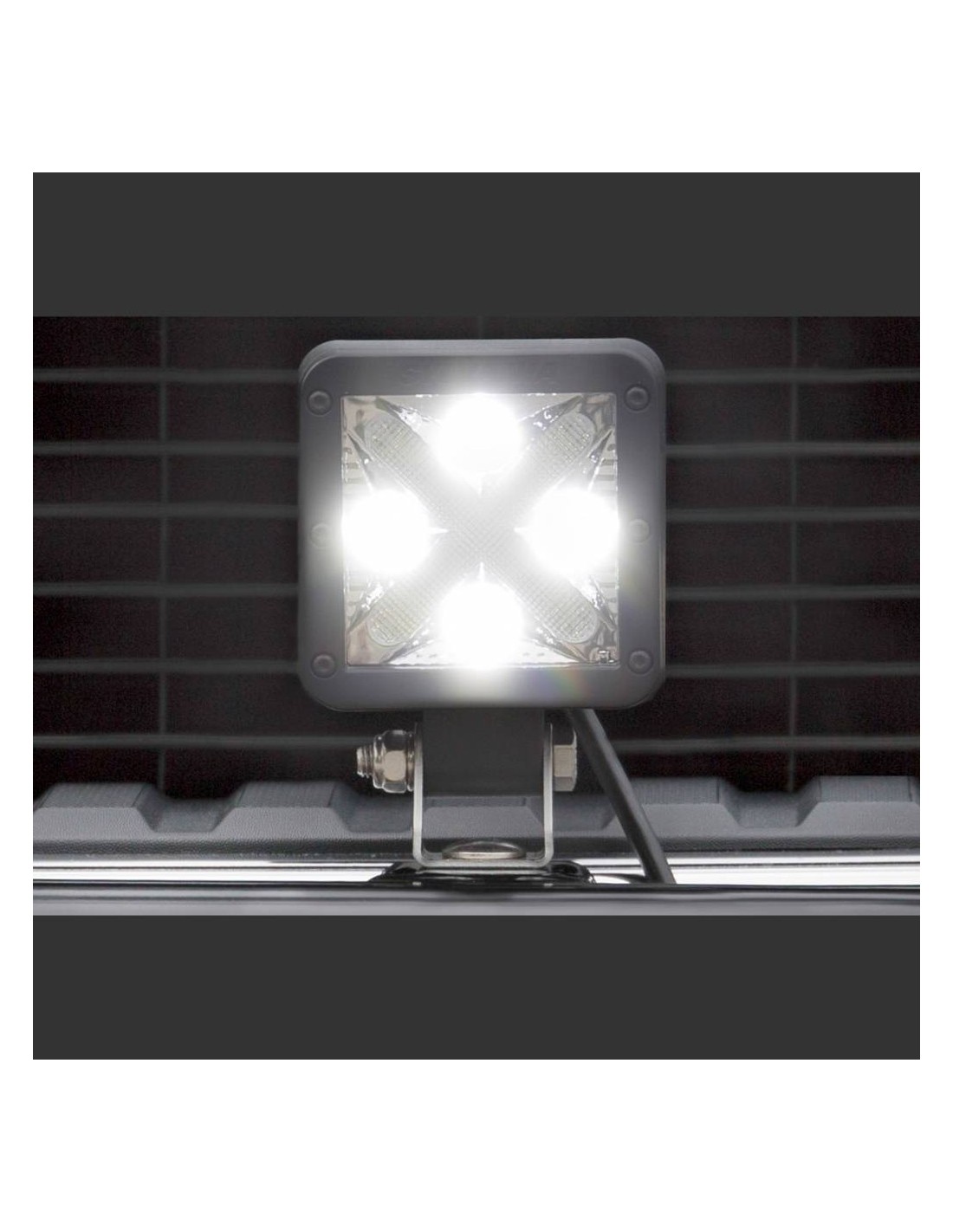

This is one of the most powerful mini projectors. OSRAM has designed an LED headlight for vehicles with two functions. It can be used as a work light (20W) and as an additional light when driving the vehicle (2W). In this case, it is a light for vehicles, vans, or vehicles with 12V or as additional lights for ATVs and 4 LED Osram of 10W with a power of approximately 5.5W/piece to maximize lumens per watt.

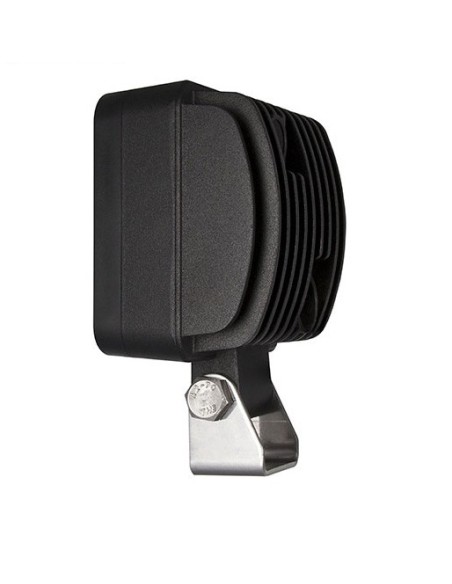

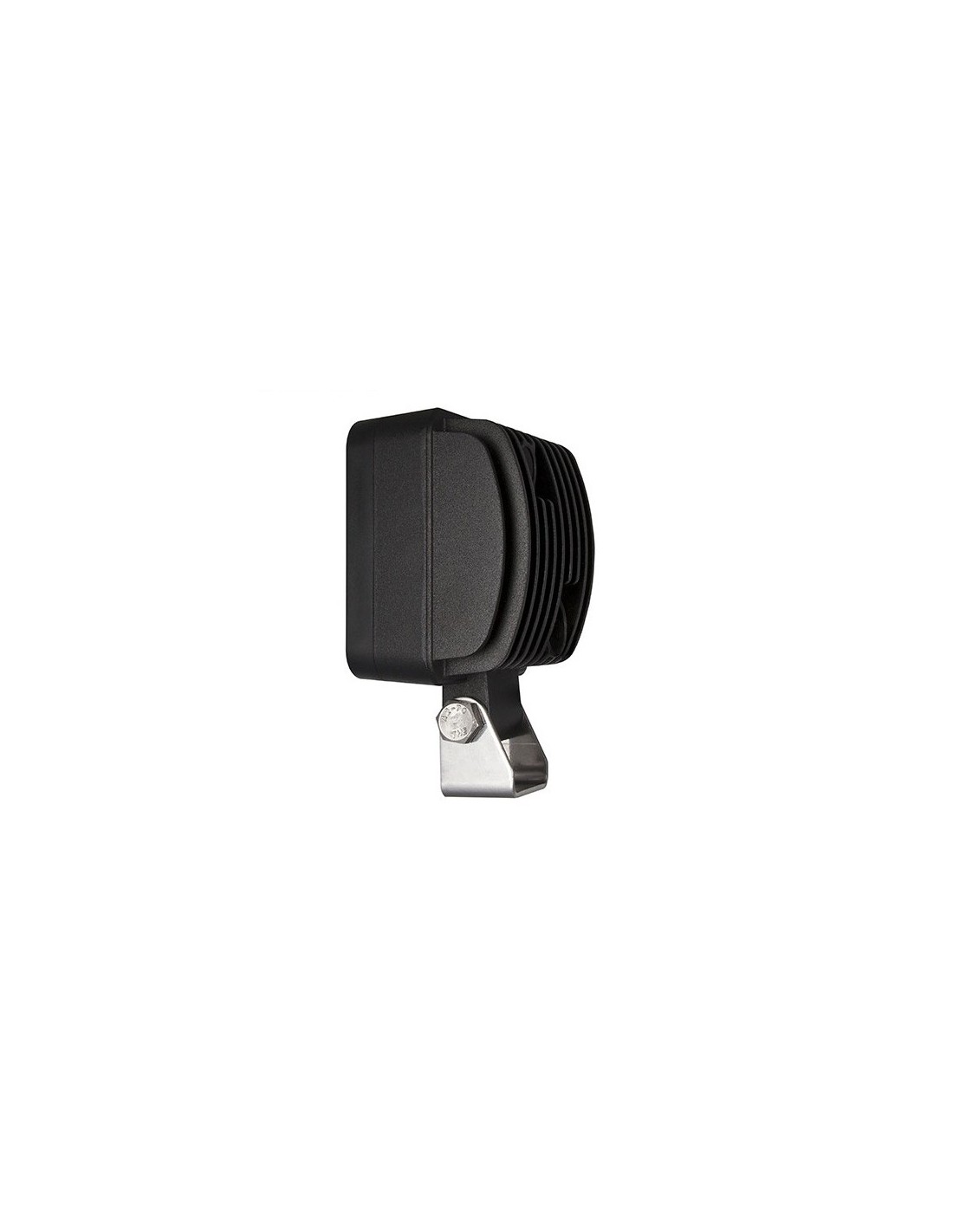

The lamp housing is made of aluminum. The small outer dimensions make the lamp very easy to install in most vehicles.

IP67 dust-resistant and fully waterproof.

..

..

Highlighted Features:

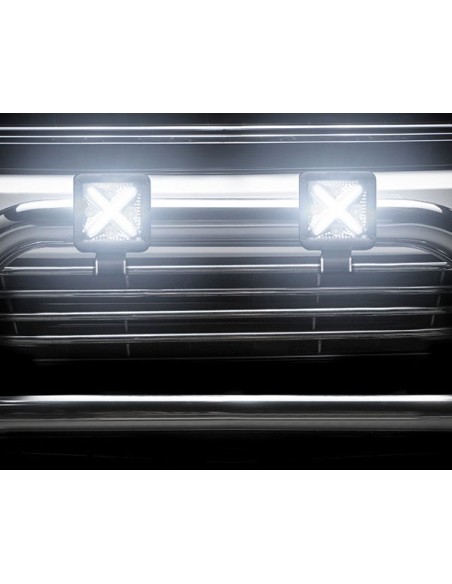

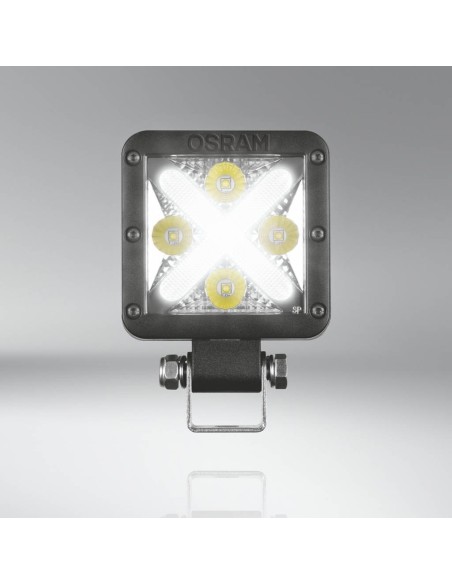

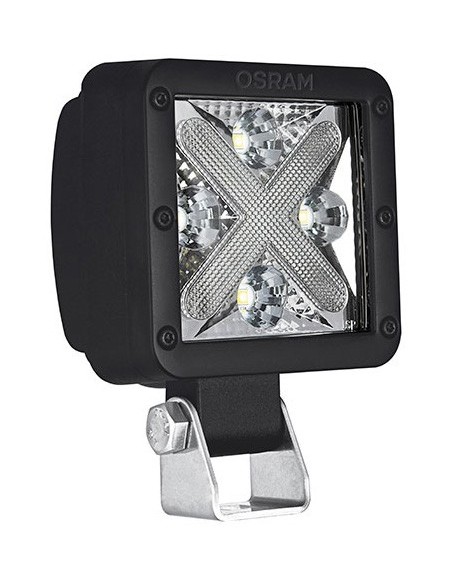

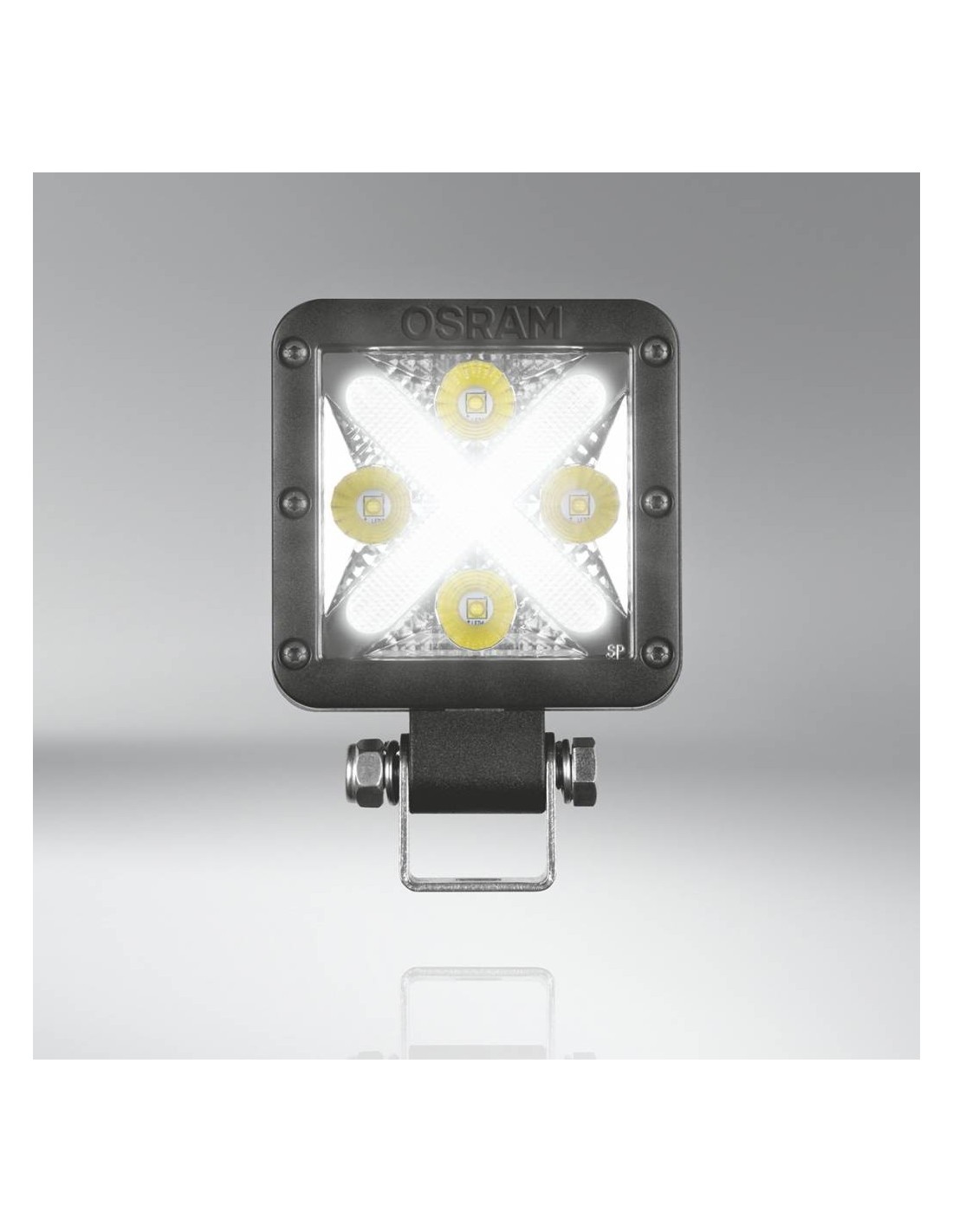

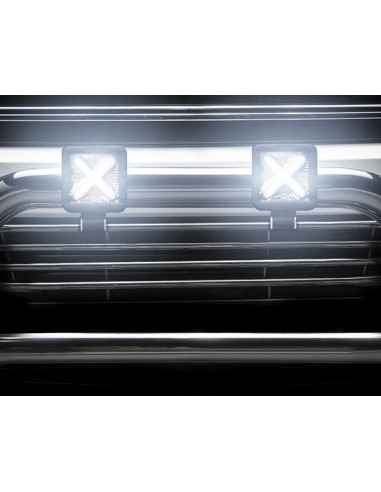

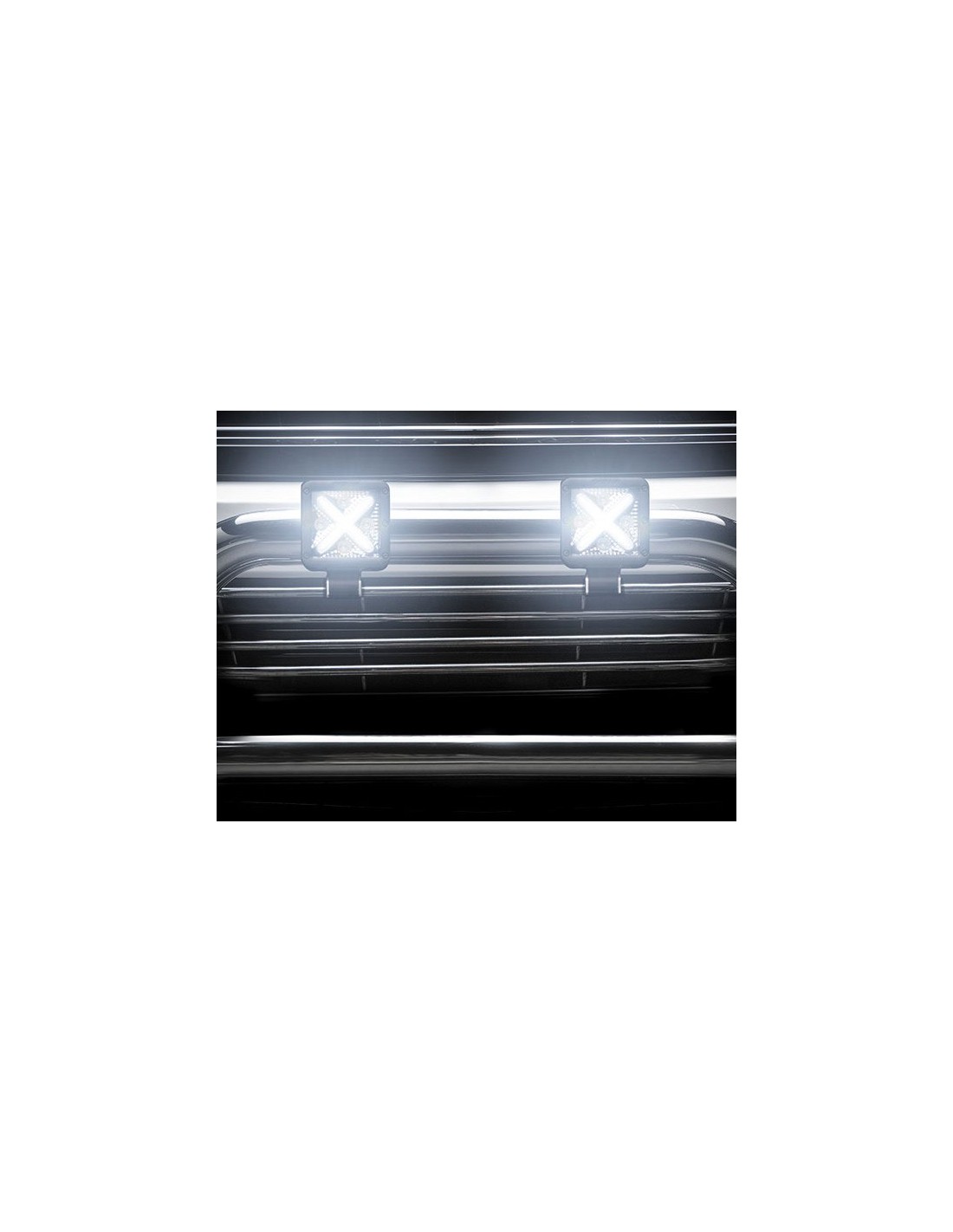

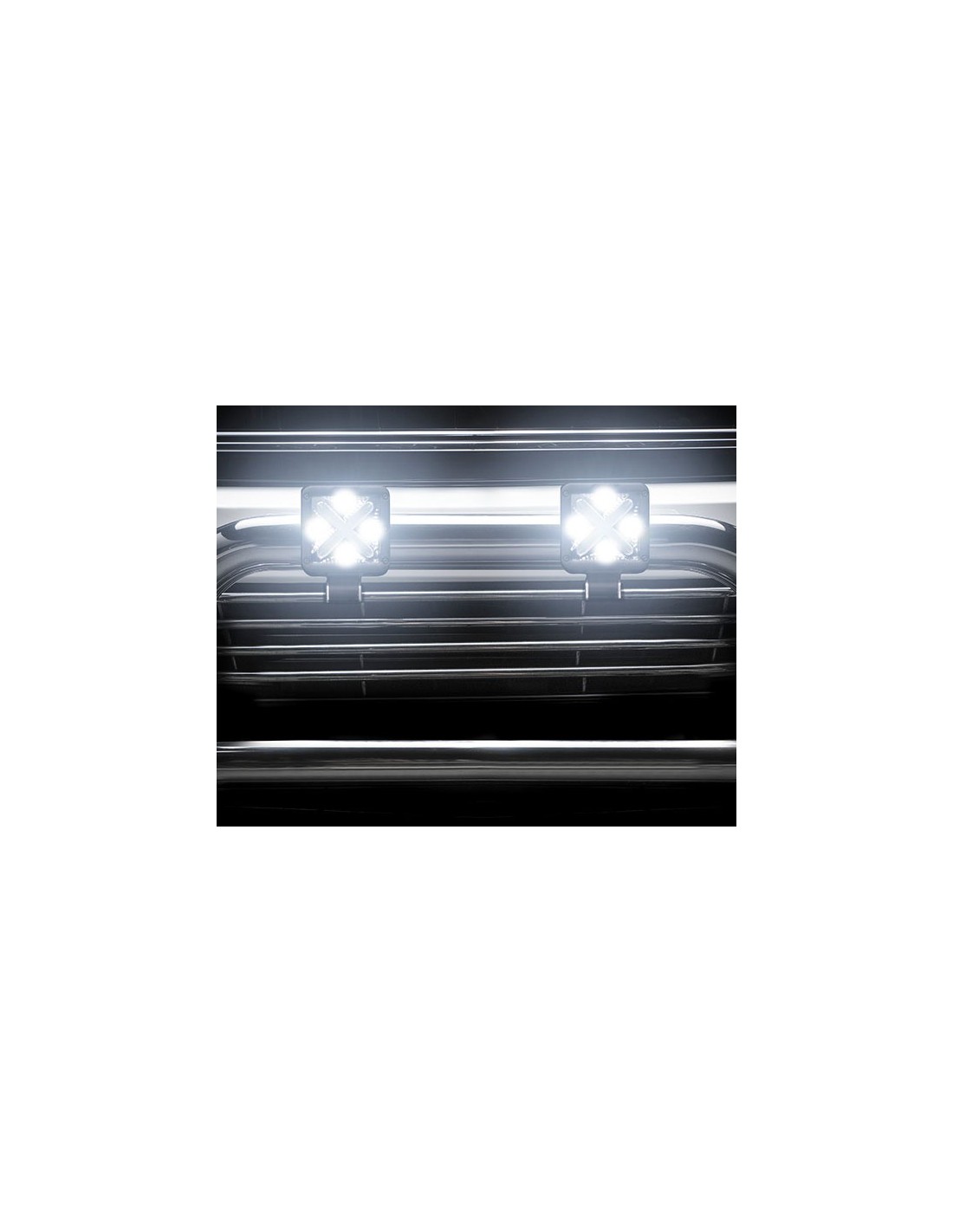

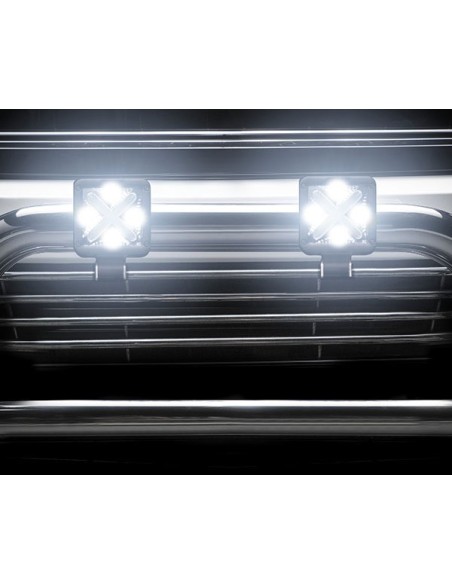

• 2 LED functions: extremely capable work light and stylish X-shaped foot light
• Enhances the appearance of your off-roader.
• NFL: Near-field lighting: up to 50 meters of light with a radius of only 43.5°.
• Extremely compact and robust: unbreakable polycarbonate lens that can withstand any high-performance application, overvoltage and undervoltage protection (10-30 V)
• Integrated heat control and management system for superior lifespan.

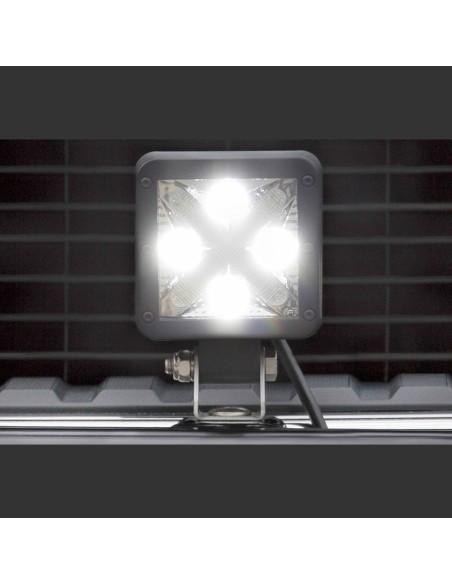

• 4 high-performance LEDs
• Color temperature is 6000K

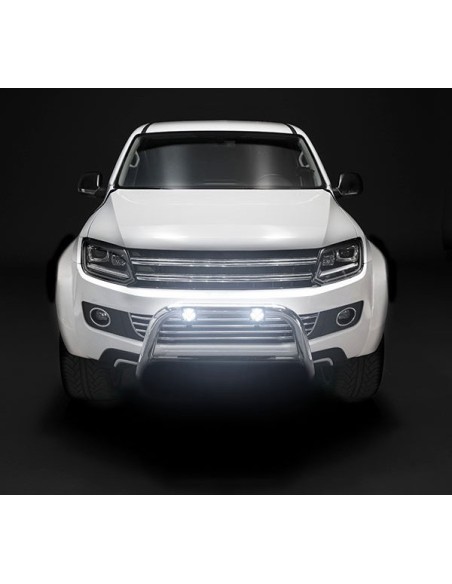

• Possible applications for 4x4, ATVs, transport vehicles, tractors, caravans, etc.

Technical Specifications:

• Light Distance: @1lx: ~110m
• Lumen Output: 1,250lm
• Color Temperature: 6000K
• Beam Angle: 13.5°
• Rated Input Power: 22/2W
• Input Voltage: 12V
• Protection Rating: IP67
• ECE: R112 (ECE Ref. 45)
• EMC/EMI: ECE R10

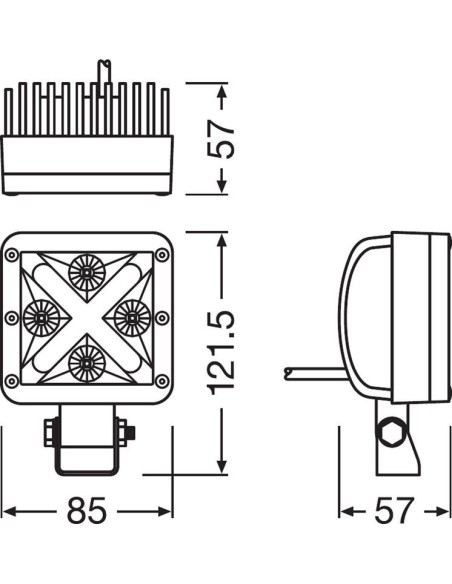

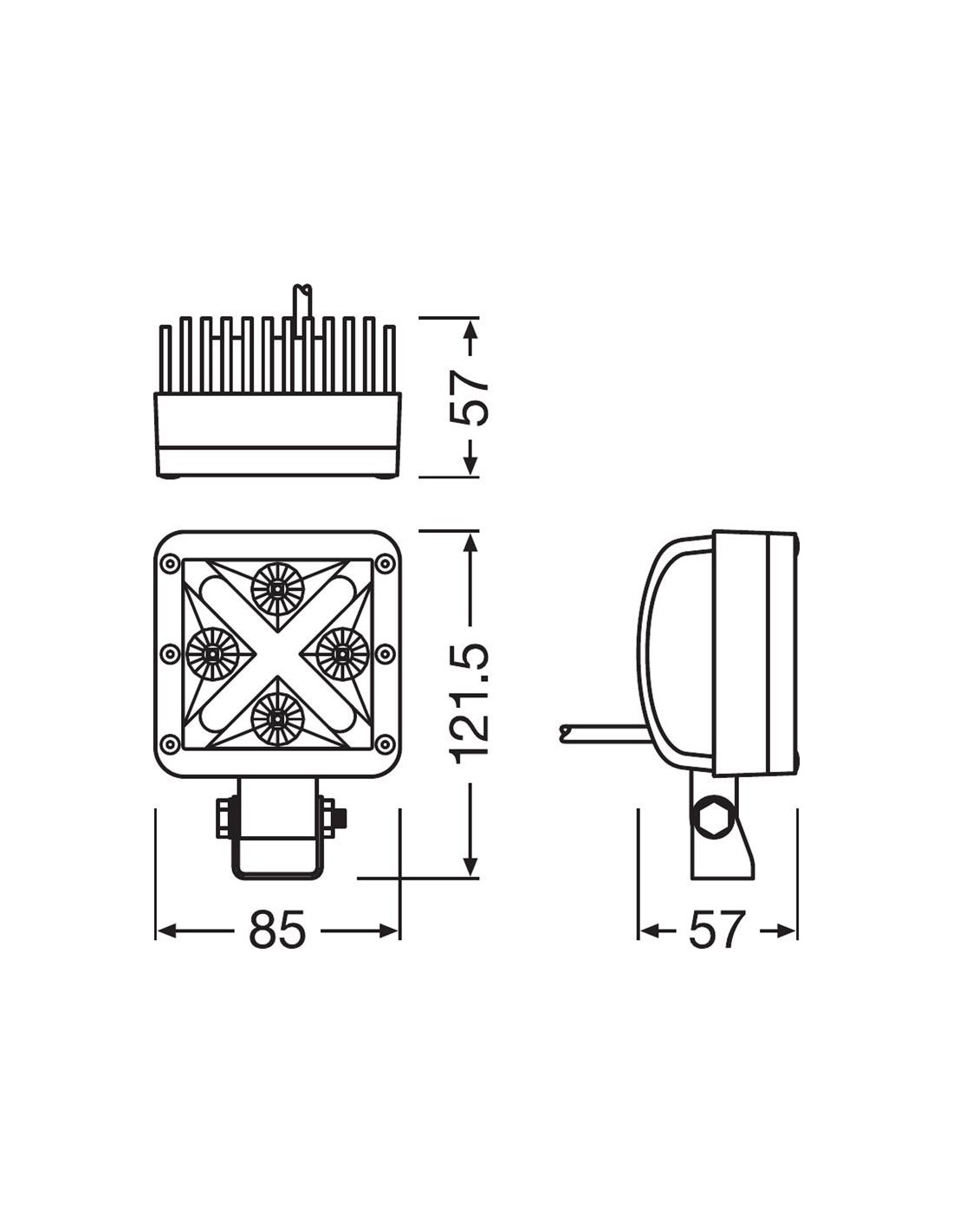

• Width: 85 mm
• Height with Bracket: 122 mm
• Depth: 57 mm
• Number of LEDs: 4 + DRL
• Lifespan: Up to 50,000 hours
• Working Range: -40°C to +63°C
• Lens: Ultra-resistant polycarbonate
• Patented Optics
• Warranty: 5 years

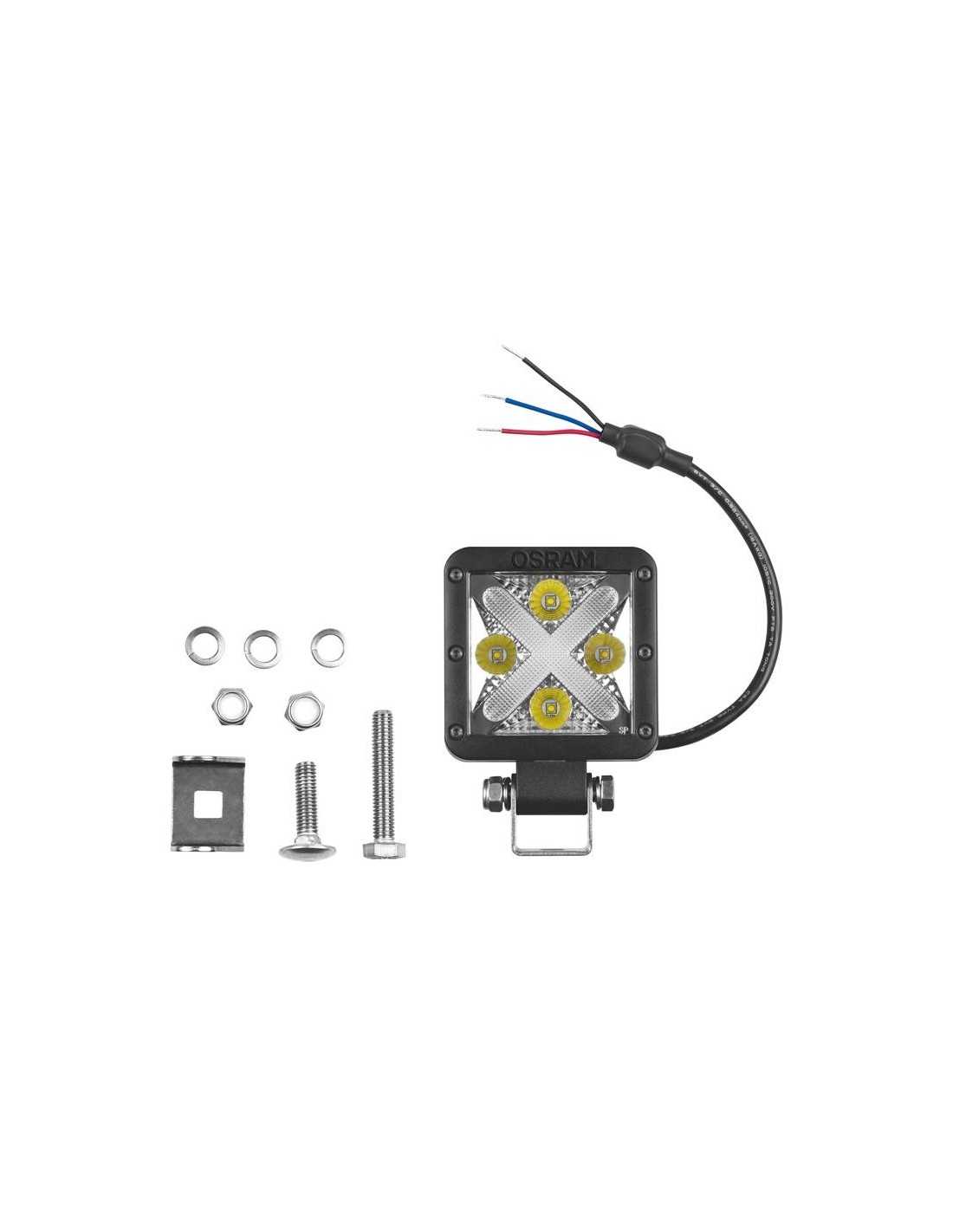

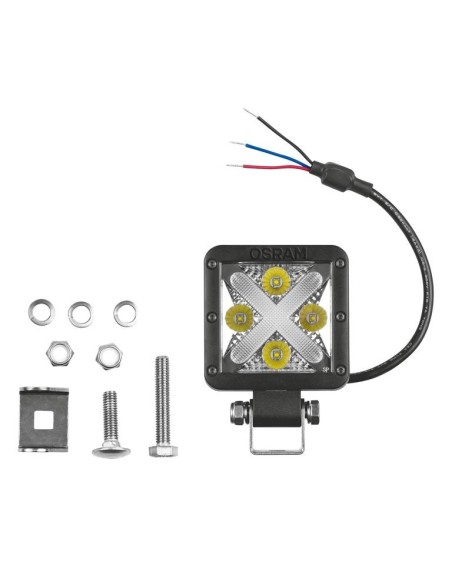

• Cable Length: 30cm
• Weight [KG]: 500 g
