Heavy Duty Suspension Kit 40mm/+300kg for Isuzu D-Max by Pedders
The 40mm/+300kg Heavy Duty Suspension Kit from Pedders is the perfect solution to enhance the load-carrying, towing, and off-road height of your Isuzu D-Max. This kit provides an approximately 40mm lift, offering increased ground clearance and an improved look. It is designed for those who need to carry heavy loads and tow, raising your vehicle and enhancing its capability in these areas.
Key Features:
Heavy Duty Kit: Designed for heavy loads (+300kg)
Enhanced Load Capacity: Allows for transporting heavy loads without sacrificing comfort.
Increased Height: Raises the ground clearance for improved off-road performance.
Pedders TrakRyder Foam Cell Shocks: Includes sintered iron piston shocks with a 40mm diameter for optimal performance.
Premium Grade Steel Springs: Provide superior strength and durability.
Easy Installation with Ezifit Struts: Fully assembled Ezifit Struts allow for quick and easy installation on your vehicle, without the need for spring compressors or reusing old parts.
Warranty: Backed by Pedders' 2-year or approximately 40,000 km warranty.
Vehicle Height Information:
Front: 800mm with 18-inch wheels.
Rear: Approximately 40mm higher than the standard height.

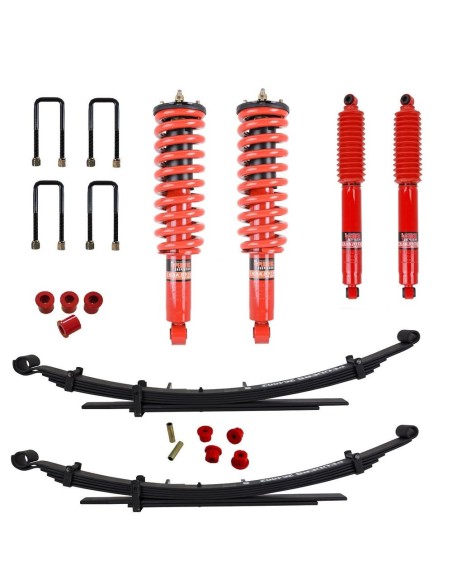

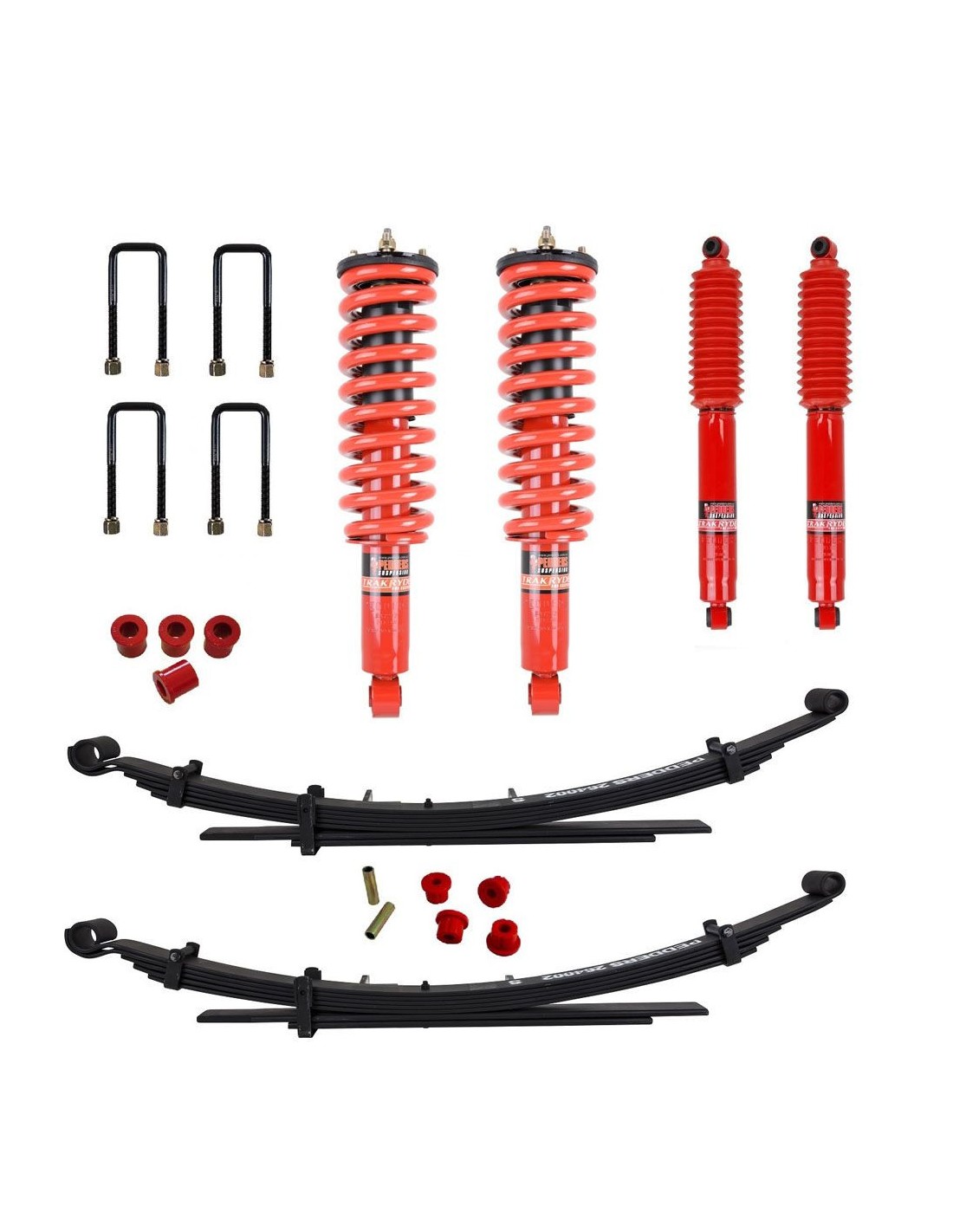

Kit Contents (Pedders Part Numbers):
- 807212 x 2 - Pedders Front Preassembled Foam Cell Ezifit Shock
- 264002 x 2 - Pedders Rear Heavy Duty (+300kg) Leaf Spring
- 153231 x 2 - Pedders Rear Foam Cell Trakryder Shock
- EP8407 x 1 - Fixed Bush Kit, Pedders
- EP8003 x 1 - Articulated Bush Kit, Pedders
- 4382 x 4 - Pedders U-Bolt 62x14x185
Additional Notes:
It is recommended to perform a wheel alignment after installation for optimal vehicle performance.
