+40 mm/+250kg Heavy Duty Suspension Kit for Isuzu D-Max by Pedders
The +40 mm/+250kg Heavy Duty Suspension Kit from Pedders is designed to enhance the load and towing capacity of your Isuzu D-Max, as well as increase the suspension height for better off-road capability. This kit is ideal for those who need to carry heavy loads or tow frequently and want to maintain comfort levels both with and without the load.
Key Features:
Heavy Duty Kit: Designed for heavy loads (+250kg)
Enhanced Load Capacity: Allows for transporting heavy loads without sacrificing comfort.
Increased Height: Raises ground clearance for improved off-road performance.
Pedders TrakRyder Foam Cell Shocks: Includes sintered iron piston shocks with a 40mm diameter for optimal performance.
Premium Grade Steel Springs: Provide superior strength and durability.
Air Assist Bolt-on Airbag System: Features auxiliary airbags to adjust height and maintain proper ride height when heavily loaded.
Warranty: Backed by a 2-year or approximately 40,000 km warranty from Pedders.
Vehicle Height Information:
Front: 840 mm with 17-inch wheels.
Rear: Approximately 40 mm higher than the standard height.

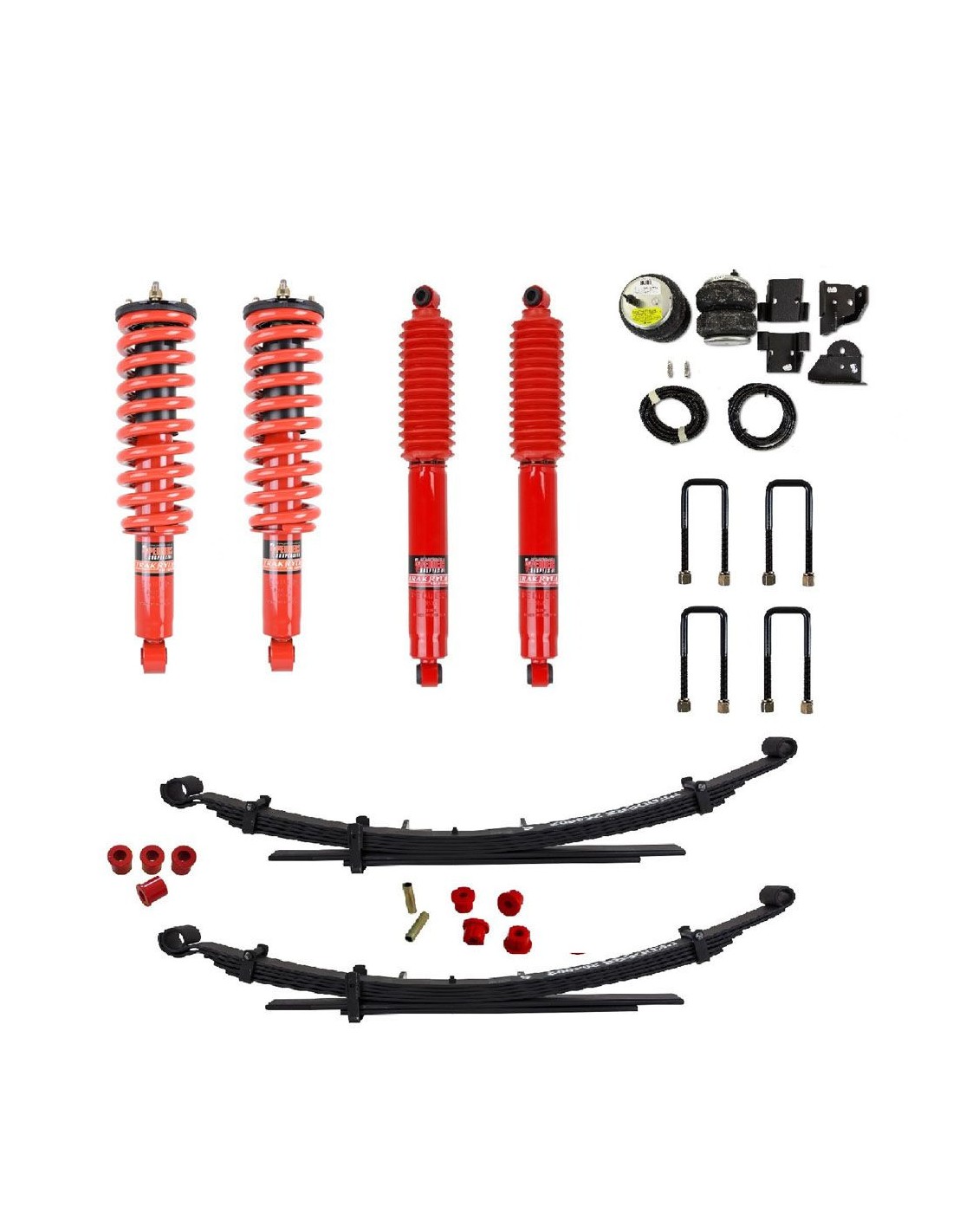

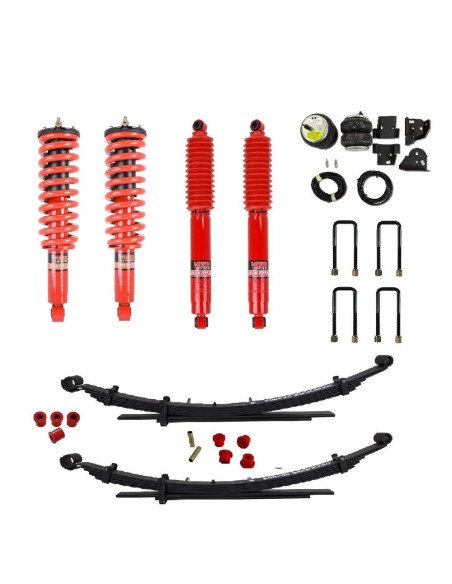

Kit Contents (Pedders Part Numbers):
- 807212 x 2 - Pedders Front Foam Cell Ezifit Preassembled Shock Absorber
- 264002 x 2 - Pedders Rear Heavy Duty (+250kg) Leaf Spring
- 153231 x 2 - Pedders Rear Foam Cell Trakryder Shock Absorber
- EP8407 x 1 - Fixed Side Polyurethane Bush Kit, Pedders
- EP8003 x 1 - Articulated Side Polyurethane Bush Kit, Pedders
- 434008 x 4 - Pedders U-Bolt
- 494104 x 1 – Pedders Air Assist Airbag System
*Additional Notes:
Alignment is recommended after installation for optimal vehicle performance.
For applications requiring continuous heavy loads, consider the Pedders Extra Heavy Duty Kit 803248.
