Are you looking to lift your D-Max?
Pedders Suspension has the solution.
This kit includes our excellent Pedders TrakRyder foam cell shock absorbers, front coil springs, new rear leaf springs, as well as the necessary U-bolts and bushings for installation.
This is our entry-level lift kit designed primarily to raise the vehicle and improve ground clearance. If you regularly carry heavy loads or tow a trailer, then this may be one of the best heavy-duty kit options for you.
This kit will lift the vehicle approx. 40 mm (see actual dimensions below) providing better ground clearance and a more stylish look. It can be used to accommodate larger tires. The quoted dimensions assume a standard vehicle. If you have additional front-end equipment such as a winch or a bumper, this will affect the final installed height. If this is the case, please contact us as different springs may be required for your application.

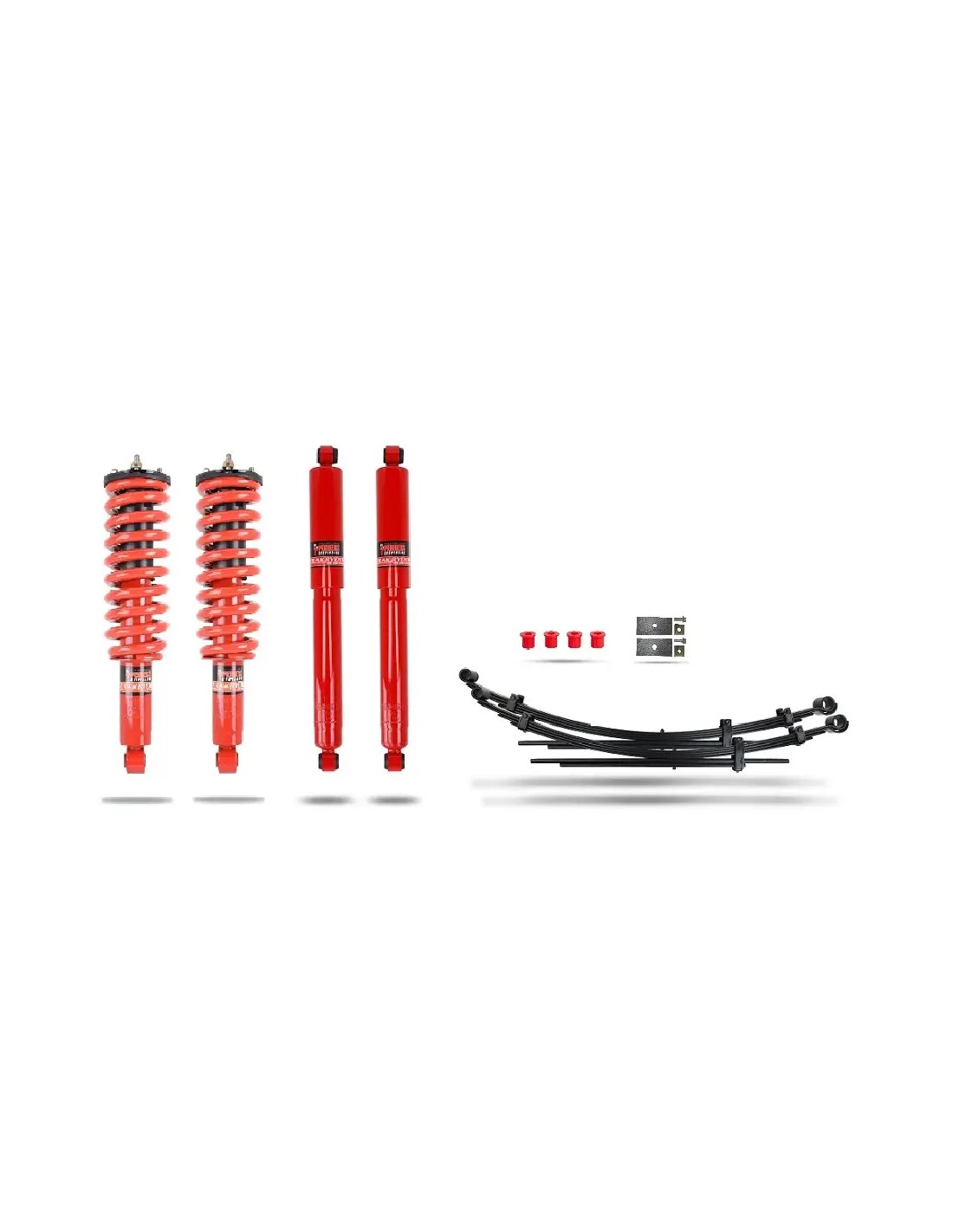

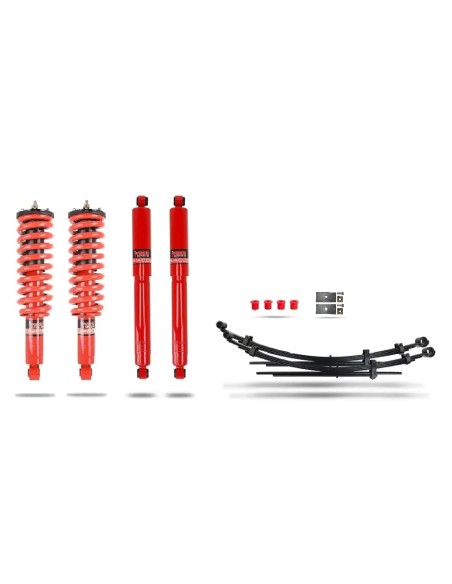

KIT CONTENT 803246 :
- 807217 x 2 - Front preassembled shock absorber + spring-top mount Pedders Foam Cell.
- 264002 x 2 - Rear leaf spring Pedders Heavy Duty.
- 153231 x 2 - Rear shock absorber Pedders Foam Cell.
- 5064 x 1 – Vibration damping wedge kit Pedders.
- EP8003 x 1 - Polyurethane bush kit articulated side Pedders.
- 434008 x 4 - Pedder U-bolts
For those who use the vehicle under continuous load, consider one of our heavy-duty options.
Please note that, as of the 2019 model, some D-Max come with a softer and compatible rear leaf spring. Installing this kit will make the rear driving of your vehicle firmer.
The new softer springs have 3 leaves, 2 primary and 1 secondary. The other stiffer set has 5 leaves, 3 primary and 2 secondary.
A MINIMUM load of 300 kg on the rear is recommended at all times. However, note that a hardtop and an average trailer hitch weigh around 130-150 kg.
These components replace the original elements. No other modifications to the vehicle are necessary. After installation, we strongly recommend getting a wheel alignment for optimum vehicle performance.
Still unsure if this is the right kit for you? Have more questions? Then, contact our team here at Pedders, who will be able to assist you.
