€1,173.98 tax excl.
Complete suspension kit PRE-ASSEMBLED REINFORCED. Compatible with Isuzu D-max, from 2017 to 2020 (1.9 liter engine, 4 cylinders, TD) with lift +40mm and
standard load.
Warranty 2 years / 40,000 kilometers.
.
Are you looking to elevate your D-Max?
Pedders Suspension has the solution.
This kit includes our excellent Pedders TrakRyder foam cell shock absorbers, front coil springs, new rear leaf springs, as well as the necessary U-bolts and bushings to install them.
This is the entry-level lift kit designed primarily to raise the vehicle and improve ground clearance. If you regularly carry heavy loads or tow a trailer, then this may be one of the best options for heavy-duty service.
This kit will raise the vehicle approx. 40 mm (see actual dimensions below) providing better ground clearance and a more stylish look. It can be used to accommodate larger tires. The quoted dimensions assume a standard vehicle. If you have additional equipment at the front, such as a winch or a bumper, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.

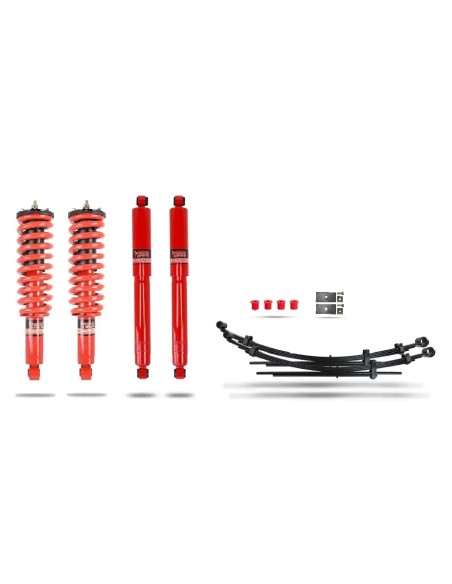

KIT CONTENT 803243:
807217 x 2 - Front Pedders foam cell shock absorber + coil spring assembly, preassembled.
263002 x 2 - Rear Pedders Heavy Duty leaf spring.
153231 x 2 - Rear Pedders foam cell shock absorber.
5064 x 1 – Pedders anti-vibration kit.
EP8003 x 1 - Polyurethane articulation side bushing kit Pedders.
434008 x 4 - Pedders U-bolts 60X13X190mm.
For those who use the vehicle under continuous load, consider one of our heavy-duty options.
Please note that starting from the 2019 model, some D-Max vehicles come with a softer and compatible rear leaf spring. Installing this kit will make the rear driving of your vehicle firmer.
The new softer leaf springs have 3 leaves, 2 primary and 1 secondary. The other stiffer set has 5 leaves, 3 primary and 2 secondary.
These components replace the original elements. No other modifications to the vehicle are necessary. After assembly, we highly recommend getting a wheel alignment for optimal vehicle performance.
Still not sure if this is the right kit? Have more questions? Then, contact our team here at Pedders, who will be able to assist you.
