Are you looking to lift your D-Max?
Pedders Suspension has the solution.

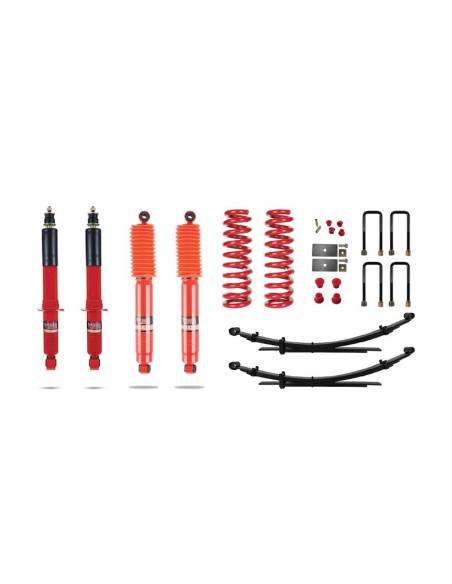

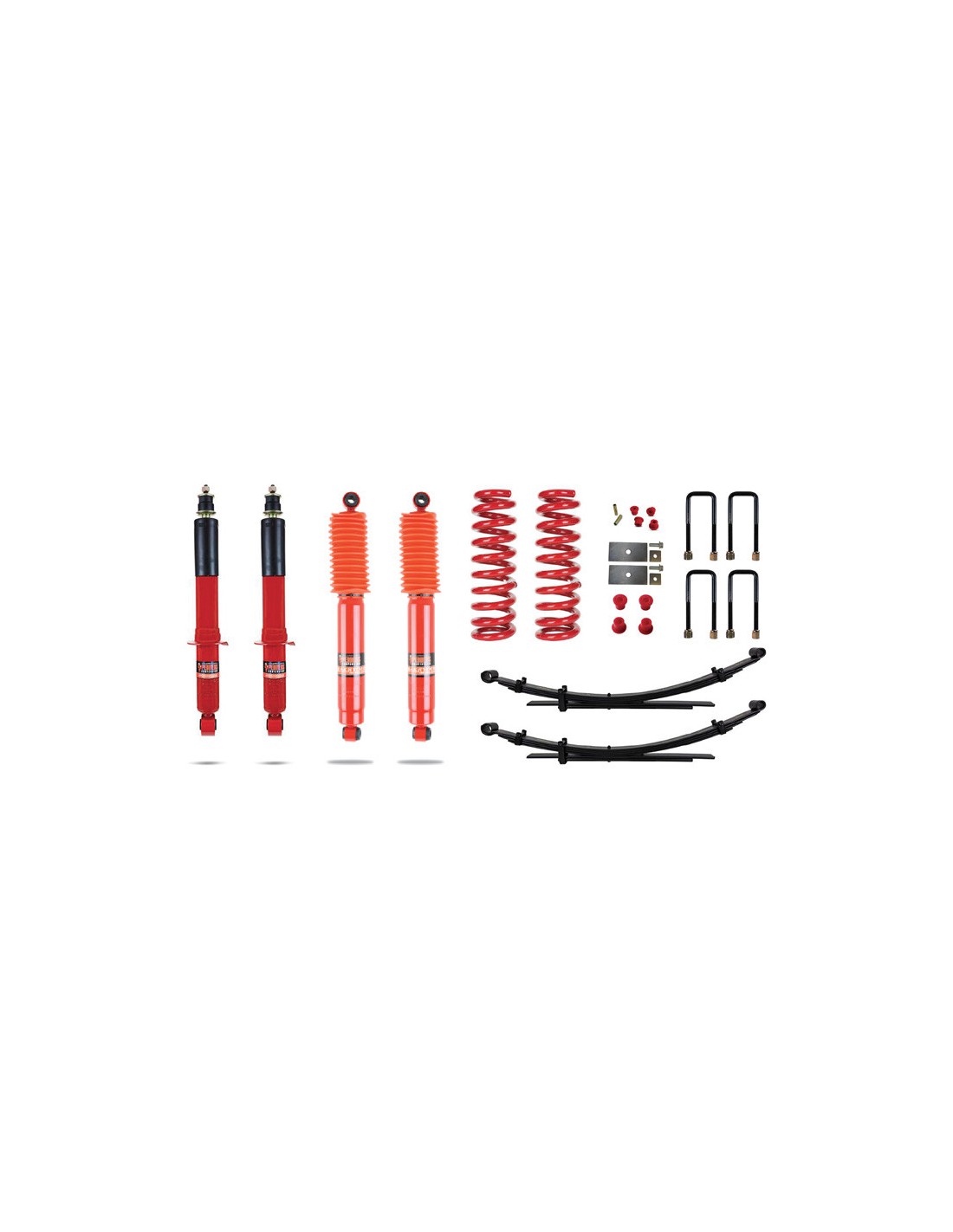

This kit includes our excellent Pedders TrakRyder shock absorbers, front coil springs, new rear leaf springs, as well as the necessary bushings and U-bolts for installation.
This is the entry-level lift kit designed primarily to raise the vehicle and improve ground clearance. If you regularly carry heavy loads or tow a trailer, then this may be one of the best heavy-duty kit options.
This kit will lift the vehicle approx. 40 mm (see actual dimensions below) allowing for better ground clearance and a more stylish look. It can be used to accommodate larger tires. The quoted dimensions assume a standard vehicle. If you have additional equipment on the front, such as a winch or a bumper, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.
KIT CONTENT 803229 :
144340 x 2 - Front shock absorber Pedders Trakryder.
270050 x 2 - Front spring Pedders.
263002 x 2 - Rear leaf spring Pedders.
5064 x1 - Anti-vibration kit
151231 x 2 - Rear shock absorber Pedders Trakryder.
EP8407 x 1 - Fixed-side polyurethane bushing kit, Pedders.
EP8003 x 1 - Articulated-side polyurethane bushing kit Pedders.
4382 x 4 - U-bolts Pedders.
For those who use the vehicle under continuous load, consider one of our heavy-duty options.
Please note that, from the 2019 model onwards, some D-Max are supplied new with a softer and compatible rear leaf spring. Installing this kit will make the rear ride of your vehicle firmer. Consider our enhanced travel kit 803243.
You can identify which spring you have by counting the number of leaves in the spring.
The softer new springs have 3 leaves, 2 primaries and 1 secondary. The stiffer set has 5 leaves, 3 primaries and 2 secondaries.
These components replace the original elements. No other modifications to the vehicle are necessary. After installation, we highly recommend getting a wheel alignment for optimal performance of your vehicle.
Still not sure if this is the right kit? Have more questions? Then, contact our team here at Pedders, who will be able to assist you.
