Are you looking to increase the load capacity of your HILUX GR Sport?
Pedders Suspension has the solution.

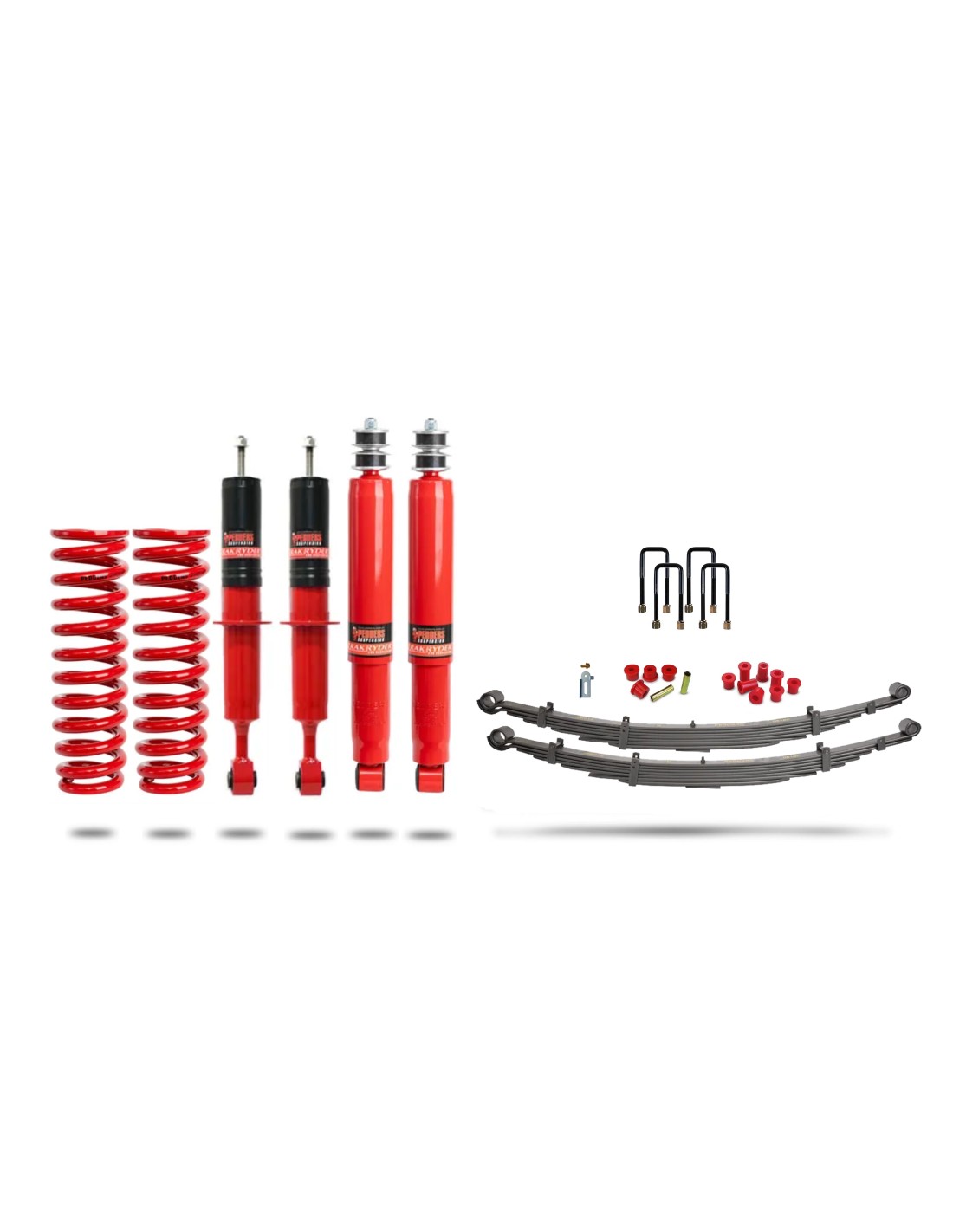

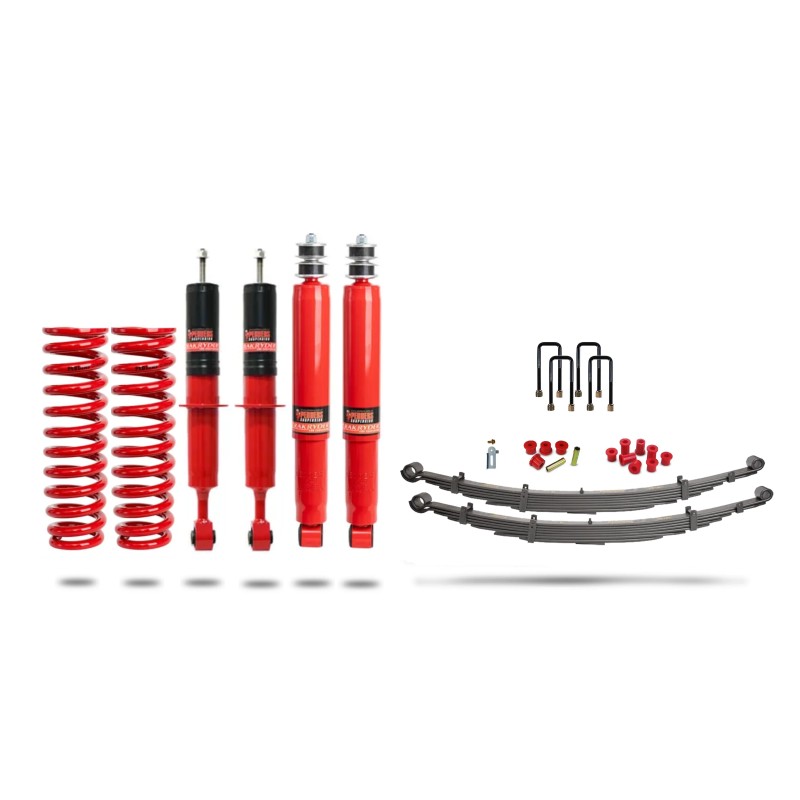

This kit includes our excellent Pedders TrakRyder shock absorbers, front coil springs, new rear leaf springs, as well as the necessary bushings and U-bolts for installation.
This is the entry-level lift kit designed primarily to raise the vehicle and improve ground clearance. If you regularly carry heavy loads or tow a trailer, then this may be one of the best heavy-duty kit options for you.
This kit will raise the vehicle approximately 40 mm (see actual dimensions below) providing better ground clearance and a more elegant look. It can also accommodate larger tires. The quoted dimensions assume a standard vehicle. If you have additional equipment in the front, such as a winch or a bull bar, this will affect the final installed height. If this is the case, please contact us as it may be necessary to supply different springs for your application.
KIT CONTENT 803228:
154001 x 2 - Front shock absorber Pedders Foam Cell.
280091 x 2 - Front spring Pedders.
265012 x 2 - Rear leaf spring Pedders Heavy Duty.
151001 x 2 - Rear shock absorber Pedders Foam Cell.
EP8338 x 1 - Kit 2 Polyurethane fixed side bushings, Pedders.
EP8339 x 1 - Kit 8 Polyurethane articulated side bushings Pedders.
434407 x 4 - U-bolts Pedders.
5056 x 1 - Height adjustment bracket.
For those who use the vehicle under continuous load, consider one of our heavy-duty options.
The new softer leaf springs have 3 leaves, 2 main and 1 secondary. The other stiffer set has 5 leaves, 3 main and 2 secondary.
These components replace the original elements. No other modifications to the vehicle are necessary. After installation, we highly recommend getting a wheel alignment for optimal vehicle performance.
Still not sure if this is the right kit for you? Have more questions? Then contact our team here at Pedders, who will be able to assist you.
